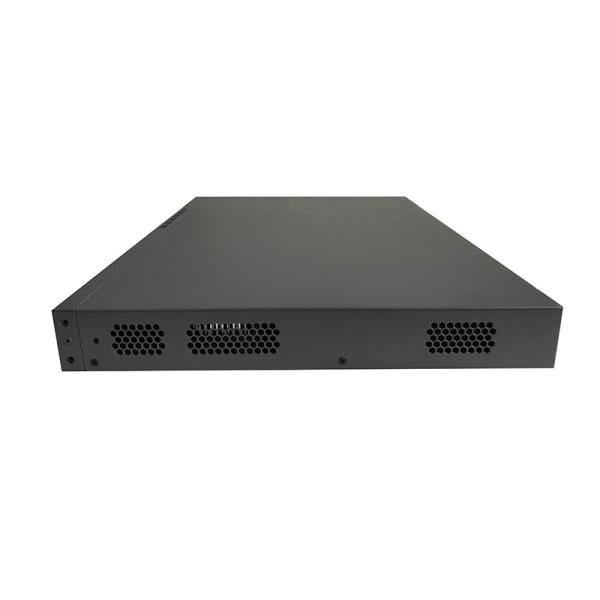

GPON EPON GEPON Optical Line Termination OLT FTTH 16 PON Ports ZC- 1016G
GPON EPON GEPON Optical Line Termination OLT FTTH 16 PON Ports ZC- 1016G
GPON EPON GEPON Optical Line Termination OLT FTTH 16 PON Ports ZC- 1016G
GPON EPON GEPON Optical Line Termination OLT FTTH 16 PON Ports ZC- 1016G
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-1016G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
PON standard :
GPON ITU-T G.984.x
Management Ports :
1*10/ 100BASE-T out-band port, 1*CONSOLE port
Dimension :
445mm×321mm×46mm (L×W×H)
Management Mode :
SNMP, Telnet, CLI, WEB
Operating temp :
-5 C~ +55C
PON interface :
16*GPON SFP Ports (Class C+)
Description

ZIKUN 16 PON Ports GPON OLT Optical Network Terminal FTTH EPON GEPON

ZC- 1016G GPON OLT provides 16 GPON ports, 8GE copper RJ45 Ethernet ports and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.

ZC- 1016G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

Independent 1U chassis equipment with 16 PON ports, each port supports up to 128 ONUs, the whole device supports up to 2048 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple- Play” applications.

Technical Specifications

Parameter Specifications
PON standard EPON ITU-T G.984.x

PON interface

 16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30d Bm(Saturation Optical - 12d Bm). Power,Transmitting optical power: +3 ~ +7d BmTransmission distance: 20KM. Max splitting ratio1:128
Upstream 2.488G ,Downstream 1.244G
Wavelength Tx1310nm, R x 1490nm
Uplink 8*copper Ethernet ports 10/100/1000M auto-negotiation
4*GE(SFP)/ 4*10GE (SFP+) auto-detection
Layer 3 Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports 1*10/ 100BASE-T out-band port, 1*CONSOLE port
Management Mode SNMP, Telnet, CLI, WEB
VLAN Tag / Un-tag,VLAN transmission,QinQ
Operating condition Operating temp: -5 C~ +55C
Storing condition Storing temp: -40C ~ +85C
Humidity 5~90%(non-condensing)
Power consumption ≤85W
Dimension 445mm×321mm×46mm (L×W×H)
Net weight 5.25Kg
