Specifications
Brand Name :
ZIKUN
Model Number :
ZC-R550
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
High Light :
AX1800 WiFi Mesh Routers, 4GE WiFi Mesh Routers, 4GE Dual Band Mesh Router
Interface :
1*GE WAN+3*GE LAN
Product :
WIFI6 MESH ROUTER
Wi-Fi Supported Frequency :
5GHz And 2.4 GHz
Power Supply :
DC12V/1.5A
Antenna :
4*5dBi external antenna
Wi-Fi Agreement :
2.4G:IEEE802.11 b/g/n/ax 5G:IEEE802.11 n/ac/ax
Description

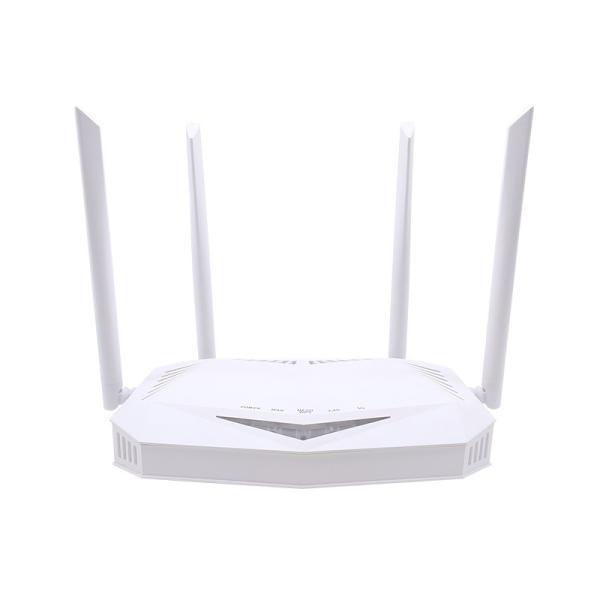

Home Intelligent Wifi Router Dual Band Network Gigabit Mesh Router​ ZC-R550

Product Description

ZC-R550 AX1800 WIFI 6 Router terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, Wi-Fi CERTIFIED™ EasyMesh , and high quality VoIP as well.

ZC-R550 support full management of HGU devices through ZIKUN OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

ZIKUN 2.4G/5G Dual Band EasyMesh Router
Strong signals extend throughout your house! There are multiple connection channels between any two nodes and all nodes are connected to form a whole network to achieve higher throughput.

1800 Mbps | WiFi 6 | OFDMA Multi-User | One SSID for Dual Band

Home Intelligent WiFi Mesh Routers Dual Band Network Gigabit DC 12V 1.5A

Product Features

1, Dual-Band Wi-Fi 6: The latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.

2,1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.

3,Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using OFDMA technology and MU-MIMO.

4,Extensive Coverage: Beamforming and four antennas combine to deliver focused reception to devices far away.

Specifications

Chipset ZX279128R(1GHz Dual core)+MT7975DN+MT7905DAN
FLASH 128MB
DDR3 RAM 256MB
Wireless rate 2.4GHz:574Mbps@2*2 Wi-Fi 6
5GHz:1201Mbps@2*2 Wi-Fi 6
Antenna 4*5dBi external antenna
Interface 1*GE WAN+3*GE LAN
Button 1*MESH/WPS+1*RESET
LED 1*LED
Wi-Fi Agreement 2.4G:IEEE802.11 b/g/n/ax
5G:IEEE802.11 n/ac/ax
MIMO modalities MU-MIMO support
Frequency bandwidth 2.4G:40MHz
5G:80MHz
Work model Routing mode, AP mode
Management approach WEB Management
State System state, interface state, routing table
Wireless Configuration Wi-Fi Basic Parameter Configuration / Blacklist
Network Settings Working mode LAN/WAN address setting
System System properties/password modification/backup upgrade/restart
MTBF > 30000H
Power Consumption ≤12W
Working temperature 0℃~40℃
Storage temperature -20℃~70℃
Working humidity 10%~95%,no condensation
Storage humidity 5%~95%,no condensation
Power adapter DC 12V/1A

What is a mesh Wi-Fi router?


Mesh systems join two or more Wi-Fi access points together, creating and sharing a single, seamless Wi-Fi network that can be expanded and set up to cover even the largest of homes or buildings.
If the Wi-Fi router that worked in your small apartment doesn't give you the wireless connectivity you want for a big house, then a mesh Wi-Fi router system may be the solution for you.
