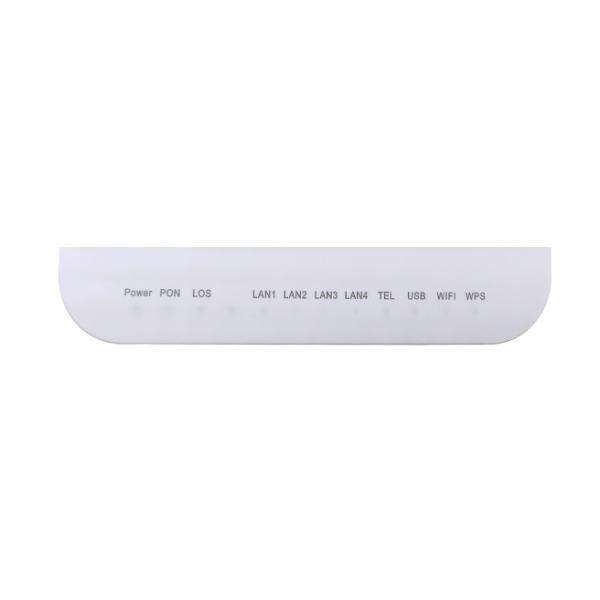

GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router
GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router
GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router
GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router
GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router
GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-520 GPON
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
GPON interface（NNI） :
GPON
Optical connector :
SC/UPC
User Network Interface（UNI） :
1GE+3FE+1POTS+WIFI+1USB
USB :
USB2.0 ，USB backup
WLAN :
2 × 2 MIMO
Antenna gain :
5 dBi，double external antenna
Transmission technology :
OMCI/TR069/Web UI
Dimensions ( W x Dx H) :
3.5CM*16.3CM*11.4CM
Description

ZIKUN GPON ONU 1GE 3FE 1USB 1POTS WiFi 802.11AC ZC-520 XPON ONT

Product Description

ZC-520 is based on mature and stable, cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.


ZC-520 GPON 1GE+3FE+1USB+1POTS+WIFI ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an GPON Gigabit Ethernet products.

GPON 1GE+3FE+1USB+1POTS+WiFi

GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router

Key Features

  • GPON/ EPON mode adaptive.
  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Integrated OMCI remote configuration and maintenance function.
  • Support rich QinQ VLAN functions and IGMP Snooping multicast features.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
  • Support 802.11n WiFi(2T2R) function.
  • Support NAT, Firewall function.
  • Support IPv4 and IPv6 dual stack.
  • Integrated line testing compliant with GR-909 on POTS.

Specifications

GPON FTTH ONU Equipment WIFI 3FE 1USB 1POTS 1GE XPON ONT Router

Technical item 1GE+3FE+1POTS+WiFi
PON

1 G/EPON port(EPON PX20+ and GPON Class B+)

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
Wavelength Tx1310nm,Rx 1490nm
Optical SC/UPC connector
LAN

Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s,MAC address learning
POTS . SIP/ H.248
. Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.
. G.711A/U, G.729 and G.722 encoding/decoding
. T.30/T.38/G.711 fax mode
. SDP protocol (RFC 2327 and RFC 4566)
. DTMF
WiFi

. IEEE 802.11 b/g/n (2.4G)
. 2 × 2 MIMO
. Antenna gain: 5 d Bi ,double external antenna
. Air interface rate:300 Mbit/s
. WMM
. Multiple SSIDs
. WPS

USB port

 . USB2.0 ,USB backup
. FTP-based network storage
. File/Print sharing based on SAMBA
. UPnP

Order Information

Product model Product specification Chipset SDRAM Memory
ZC-520GPON 1GE+3FE+1POTS+WIFI+1USB Hisilicon 64MB
