4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards
4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards
4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards
4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards
4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards
4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-530NX6
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
GPON interface（NNI） :
XG-PON interface
Optical connector :
SC/UPC
User Network Interface（UNI） :
4GE+1POTS(option)+AX3000 WiFi 6+1USB2.0+1USB3.0
WLAN :
2 × 2 MIMO (2.4G)，2 × 2 MU-MIMO (5G)
Antenna gain :
5 dBi，five external antenna
Transmission technology :
OFDMA,MU-MIMO,1024QAM,180MHz frequency bandwidth
Description

ZIKUN XG-PON ONT 4GE AX3000 WiFi6 XPON OUN with IEEE802.3-2005 standards

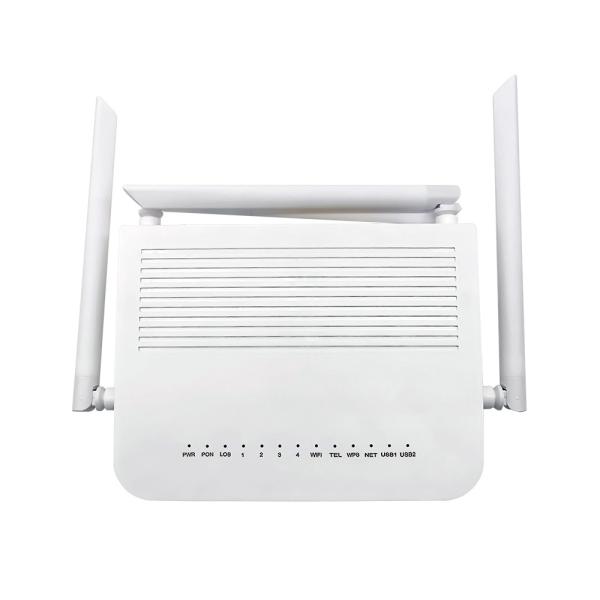

ZC-530NX6 is a WiFi6 XG-PON Optical Network Terminal(HGU) designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice(VoIP), video (IPTV) and high speed internet access.

4GE WiFi6 1POTS XG PON ONT OUN AX3000 With IEEE802.3-2005 Standards

GPON interface(NNI):1 x XG-PON interface
Optical port CLass N2a optical system
Optical connector SC/UPC
Receiving Sensitivity -28dBm
Overload optical power -8 dBm
Transmitting Optical Power 0.5~5dBm
Transmit rate 9.953Gbit/s downstream; 2.488Gbps upstream
Wavelength Receiving(DOWN):1577nm；Transmitting(UP):1270nm
Authentication SN/ Password/LOID /LOID+Password authentication

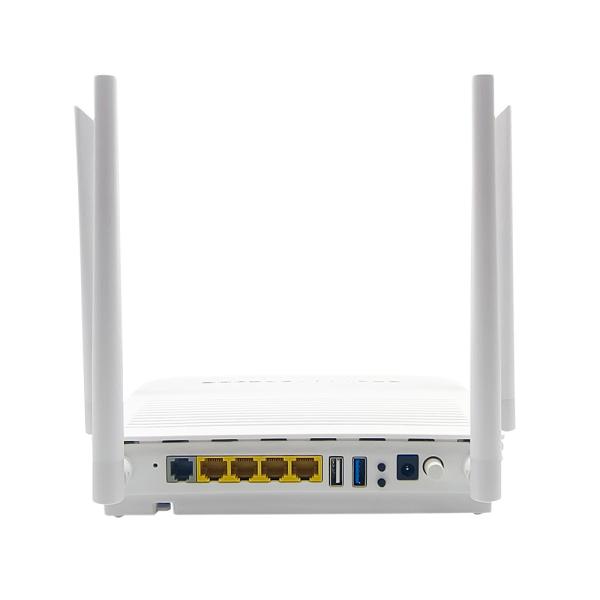

User Network Interface(UNI):4GE+1POTS(option)+AX3000 WiFi 6+1USB2.0+1USB3.0

Ethernet Port

 • Ethernet port-based VLAN tags and tag removal
• VLAN transparent and aggregation
• MAC address learning
• Q-in-Q
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

(option)

 • SIP/H.248
• Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.
• G.711A/U, G.729 and G.722 encoding/decoding
• SDP protocol (RFC 2327 and RFC 4566)
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP/H.248 protocol)
WLAN • IEEE 802.11 b/g/n/ax (2.4G),
• IEEE 802.11 a/n/ac/ax (5G)
• 2 × 2 MIMO (2.4G)
• 2 × 2 MU-MIMO (5G)
• Antenna gain: 5 dBi,five external antenna
• 2.4G&5G concurrent

• Air interface rate:574 Mbit/s (2.4G); 2402 Mbit/s(5G)

2.4G:2X2,11 ax ,support max 40MHz frequency bandwidth in 574Mbps rate

5G:2X2,11 ax ,support max 180MHz frequency bandwidth in 2402Mbps rate
• EIRP reach 2.4G:18 dBm, 5G: 21 dBm
• OFDMA,MU-MIMO,1024QAM,180MHz frequency bandwidth
• WMM,WPS
• Multiple SSIDs
USB port • USB2.0/USB3.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA DMS/UPnP AV (media server)
Product Function
GPON • ITU-T G.987.1-4
• ITU-T G.988
• 32 TCONTs /256GEM ports
• 8 Egress queues per TCONT at least
• VLAN or VLAN plus priority gem mapping mode
• Performance monitoring: eth/Gem port
• Dying gasp
Layer 2 Features • MAC learning (SVL)/aging
• Support max frame length to 1518 bytes
• VLAN tagging for untagged packets
• Support VLAN 1-4094
• VLAN transparent/translation
Layer 3 Features • PPPoE/Static IP/DHCP/Bridge
• NAT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack,and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
• RIPv2 with passive mode
Multicast • IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
• IGMP snooping and IGMP Proxy
• MLD v1/v2
Qos • Support 8 Queues with Strict Priority
• Ethernet port rate limitation
• SP/WRR/SP+WRR
• Service flow classification
Security • Firewall
• MAC/Port/URL Filter
Management • OMCI/TR069
• Web UI(Http by LAN and WAN)
• Telnet(Telnet by LAN and WAN)
• SSH management with CLI commands

• Dual-system software backup and rollback
Physical Performance
Dimensions ( W x Dx H)
18.7CM*12.6CM*4CM(withoutexternalantennaandpads)
Weight About 400g
Working temperature 0°C ~ 45°C
Working humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50 / 60 Hz
System power supply 12V DC, 1.5 A
Power consumption <15W
System Configuration
Main Chip ZTE ZXIC ZX279131, 1.2GHz Dual core
RAM 512MB
Flash 256MB
WiFi Chip MTK MT7976DN(RF front-end chip)+MT7916DAN(WIFI chip )
