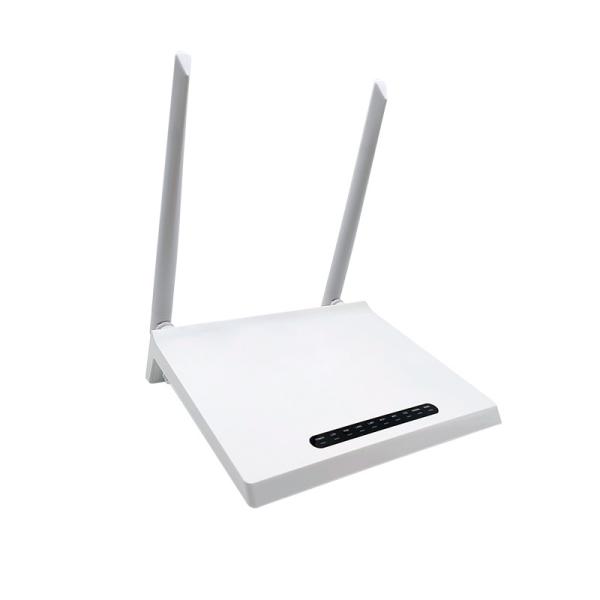

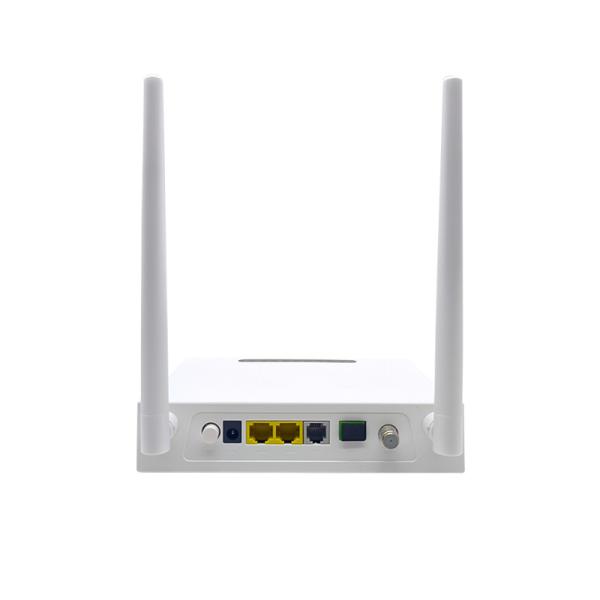

2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT
2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT
2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT
2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT
2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT
2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-512T
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
High Light :
XPON ONU, CATV ONU
Product :
1GE+1FE+1VoIP+WIFI+CATV+WDM+AGC
Type :
XPON ONU
PON Port :
1 G/EPON port(EPON PX20+ and GPON Class B+)
Wavelength :
Upstream: 1310nm; Downstream: 1490nm
Power Supply :
DC 12V/1.5A,12W
Description
GPON XPON ONU 2x2 MIMO 1GE 1FE 1VoIP ZC-512T With WiFi CATV ONT

Product Overview


1GE+1FE+1VoIP+WiFi+CATV+WDM+AGC Mesh terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, Wi-Fi EasyMesh,and high quality VoIP as well.

It support full management of HGU devices through ZIKUN OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

2x2 MIMO XPON GPON 1GE ONU 1FE 1VoIP WiFi CATV WDM AGC ONT

Feature

  • Supports Dual Mode (can access GPON/EPON OLT).
  • Supports GPON G.984/G.988 standards and IEEE802.3ah.
  • Support CATV interface for Video Service and remote control by Major OLT
  • Support SIP Protocol for VoIP Service
  • Integrated line testing compliant with GR-909 on POTS
  • Support 802.11n WIFI (2x2 MIMO) function
  • Support NAT, Firewall function.
  • Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
  • Support port mode of VLAN configuration
  • Support LAN IP and DHCP Server configuration
  • Support TR069 Remote Configuration and WEB Management
  • Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
  • Support IPv4/IPv6 dual stack
  • Support IGMP transparent/snooping/proxy
  • In compliant with IEEE802.3ah standard
  • Compatible with popular OLT(HW, ZTE, FiberHome...)

Specifications

Technical Item Details
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm; Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: Multiple SSID

Channel:13

Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM
CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
POTS Port

RJ11

Max 1km distance

Balanced Ring, 50V RMS
LED 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS
Push-Button 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition

Temperature : 0℃～+50℃

Humidity :10%～90%(non-condensing)
Storing Condition

Temperature : -40℃～+60℃

Humidity :10%～90%(non-condensing)
Power supply DC 12V/1A
Power Consumption <6W
Net Weight <0.4kg
