Specifications
Brand Name :
ZIKUN
Model Number :
ZC-S2010G
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Ports :
10
Switching capacity :
20G
Monomode optical fiber :
20/40/60/80/100KM
Operating temperature :
-40℃~+85℃
Dimensions（mm） :
143X105X53
Input voltage DC(V) :
12-58
Description

Nor Managed Zikun 10 Port Gigabit Ethernet Industrial Switch With 2 SFP

ZC-S2010G Ethernet Industrial switches adopt industrial rail design, 8GE+2SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch, with high integration, rich functions, simple and convenient, etc., representing the industry The highest level.

ZC-S2010G contains 8 Gigabit electrical ports and 2 Gigabit optical ports, which are especially suitable for occasions with large data streams such as video transmission. Support the two-layer management protocol required by the rich industrial switch applications, support the ITU G.8032 redundant ring network protocol, form a cascaded network, single ring, tangent ring network and other topological structures, self-healing time <20ms, guarantee The real-time and stability of the network.

ZC-S2010G Ethernet Industrial switches adopt mature technology and open network standards, adapt to low temperature and high temperature, have strong anti-electromagnetic interference, anti-salt spray, anti-vibration, and anti-shake, meet the harsh working environment requirements of industrial sites, and provide efficient, reliable, and fast the industrial Internet of Things solutions;

10 Port Industrial Gigabit Ethernet Switch Nor Managed With 2 SFP

Model Feature

Model ZC-S2006G ZC-S2010TG ZC-S2010G ZC-S2012G
Gigabit optical port(GE SFP) 2 1 2 2
Gigabit electrical por(GE RJ-45) 4 9 8 10
Input voltage DC(V) 12-58 12-58 12-58 12-58
Power consumption(W) <6 <6 <6 <6
Weight(kg) 0.5 0.5 0.5 0.58
Dimensions(mm) 143X105X53

Specifications

Provider Mode Ports
Power interface Phoenix terminal
LED Indicators PWR,SYS,Optical port indication
Cable type&Transmission distance
Twisted-pair 0-100m(CAT5e,CAT6)
Monomode optical fiber 20/40/60/80/100KM
Multimode optical fiber 550m
Electrical Specifications
input voltage DC12-58V
Layer 2 Switching
Switching capacity 20G
Packet forwarding rate

14.88Mpps
MAC address table 4K
Buffer 1M
Forwarding delay <10us
MDX/MIDX Support
Flow control Support
Jumbo Frame Support 9.6Kbytes
Environment Condition
Operating temperature -40℃~+85℃
Storage/transport temperature -40℃~+85℃
Relative humidity 5%~95% non-condensing
Thermal methods Fanless design, natural heat dissipation
Mechanical Dimensions

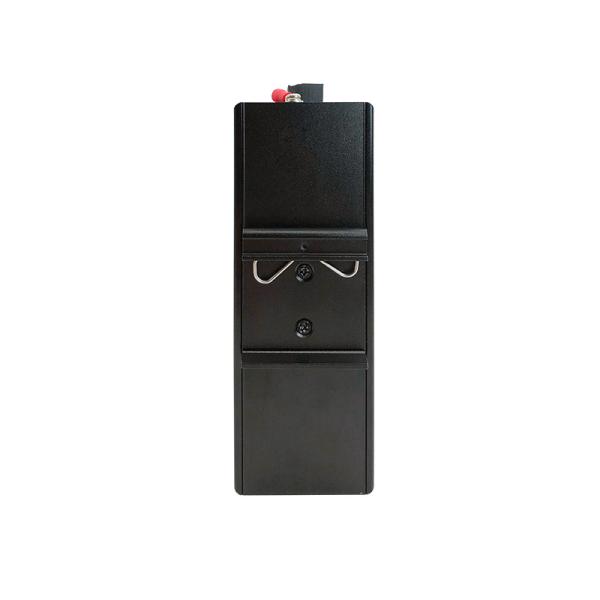

Installation Method Clamp rail installation, hanging ear installation
EMC&INGRESS PROTECTION
IP Level IP40
Surge protection of Power IEC 61000-4-5 Level X(6KV/4KV)(8/20us)
Surge protection of Ethernet port IEC 61000-4-5 Level 4(4KV/4KV)(10/700us)
ESD IEC 61000-4-2 Level 4 (8K/15K)
Authentication
Authentication Ministry of Public Security,CCC/CE/FCC/RoHS
Accessories
Accessories Equipment, terminals, certificate, manual, power adapter (optional)
