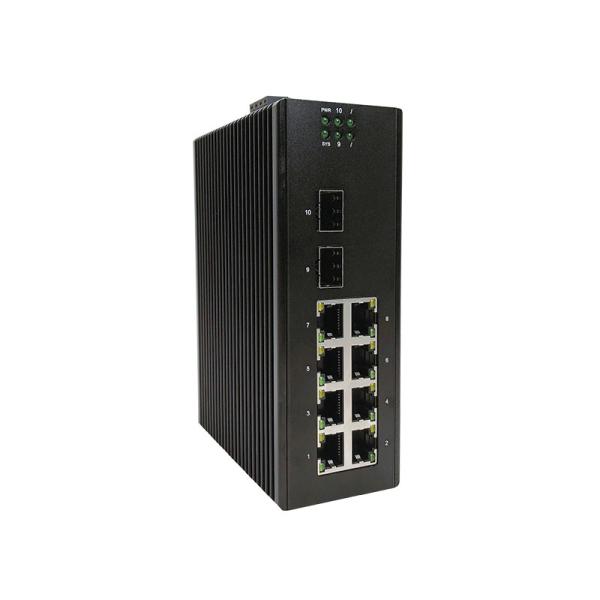

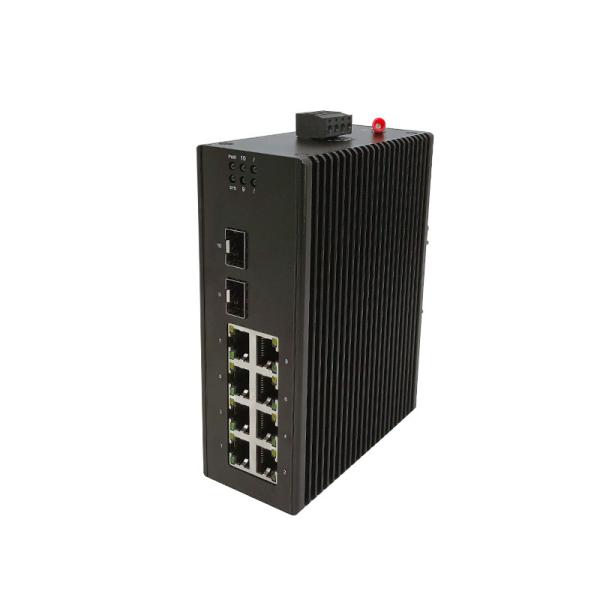

ZIKUN S2010MG PoE Industrial Ethernet Switch Wall Mount 6 Port Managed Switch
ZIKUN S2010MG PoE Industrial Ethernet Switch Wall Mount 6 Port Managed Switch
ZIKUN S2010MG PoE Industrial Ethernet Switch Wall Mount 6 Port Managed Switch
ZIKUN S2010MG PoE Industrial Ethernet Switch Wall Mount 6 Port Managed Switch
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-S2010MG
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Ports :
10
Power consumption)(W) :
<9W
Dimensions（mm） :
160X120X53
Management Port :
Support console
PoE Protocol :
802.3af，802.3at
PoE Management :
Support
Description

ZIKUN S2010MG 6 Ports Managed Industrial Ethernet Switch With Wall Mount
Model Feature

ModelZC-S2006MGZC-S2010MG
Gigabit optical port(GE SFP)22
Gigabit electrical port(GE RJ-45)48
RS232 Manage Port●●
Input voltage DC(V)48-5448-54
Power consumption)(W)<7.5W<9W
PoE Port1-41-8
Max PoE consumption)(W)120240
Weight(kg)0.650.8
Dimensions(mm)143X105X53160X120X53

ZIKUN S2010MG PoE Industrial Ethernet Switch Wall Mount 6 Port Managed Switch

Specifications

Provider Mode Ports
Management PortSupport console
Power interfacePhoenix terminal, dual power supply redundancy (redundant power)
LED IndicatorsPower,Status,Optical port indication
Cable type&Transmission distance
Twisted-pair0-100m(CAT5e,CAT6)
Single mode fiber20/40/60/80/100KM
Multimode optical fibre550m
Network Topology
Ring topologySupport
Star topologySupport
Bus topologySupport
Tree TopologySupport
Hybrid topologySupport
Electrical Specifications
Input voltage

DC48-54V；
Prevent reverse connection, overvoltage and overcurrent protection

PoE Support
PoE Protocol802.3af,802.3at
PoE Pin Assignment1,2+；3,6-
PoE ManagementSupport
Layer 2 Switching
Switching capacity20G
Packet forwarding rate14.9Mpps
MAC address table

Comply with IEEE 802.1q standard; support MAC address automatic learning and aging;
Support static and dynamic MAC entries; support SVL, do not support IVL;
MAC address capacity: 8K (S2006MG); 16K (S2010MG)

VLAN Support and Quantity(VLAN)

Support 4094 VLANs; support port-based VLAN;
Support access port, trunk port and hybrid port

BufferS2006MG:1M；S2010MG:2M
Flow controlSupport IEEE802.3x
Spanning TreeSupport STP,RSTP和MSTP
ERPS(G.8032)Support single, tangent, and intersecting rings; support multiple instances
Port aggregationSupport static aggregation; supports dynamic aggregation (LACP)
Multicast

Support IGMP V1 Snooping；Support IGMP V2 Snooping；
Support IGMP V3 Snooping；Support IGMP Fast Leave；
Support static multicast entries

Port MirroringSupport port-based two-way mirroring
Storm ControlSupport
Interface CountersSupport
NTP clientSupport
TFTP ClientSupport
Ping/tracert detection

Supportping(ipv4)；Support ping(ipv6)；
Supporttraceroute(ipv4)；Support traceroute(ipv6)

security feature
Dot1x

Support port-based authentication; support MAC-based authentication;
Support RADIUS service

Management Function
Command Line(CLI)Support
Management serial port(Console)Support
TelnetSupport
WEB managentSupport
SNMPSupport SNMPv1/v2c/v3
User ManagementSupport login authentication
RMONSupport statistics group; support history group; support alarm group; support event group
IPV4/IPV6Support
System LogSupport
Configuration File Download/UploadSupport
Upgrade FirmwareSupport
Environmental conditions
Operating temperature-40℃~+85℃
Storage/transport temperature-40℃~+85℃
Relative humidity5%~95% non-condensing
Thermal methodsFanless design, natural heat dissipation
Mechanical Dimensions
Installation MethodClamp rail installation, hanging ear installation
EMC&INGRESS PROTECTION
IP LevelIP40
Surge protection of Ethernet portIEC 61000-4-5 Level 4
Instantaneous pulse anti-jamming(EFI)IEC 61000-4-4 Level 4
Anti-static interference(ESD)IEC 61000-4-2 Level 4
Authentication
AuthenticationMinistry of Public Security,CCC/CE/FCC/RoHS
Accessories
AccessoriesEquipment, terminals, certificate, manual, power adapter (optional)
