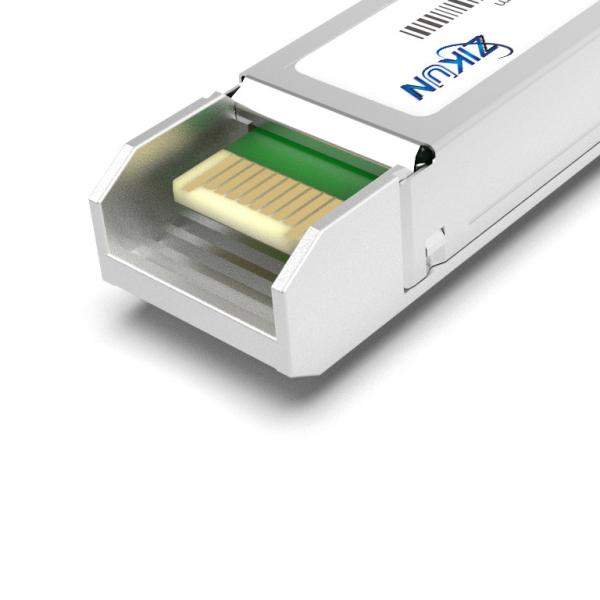

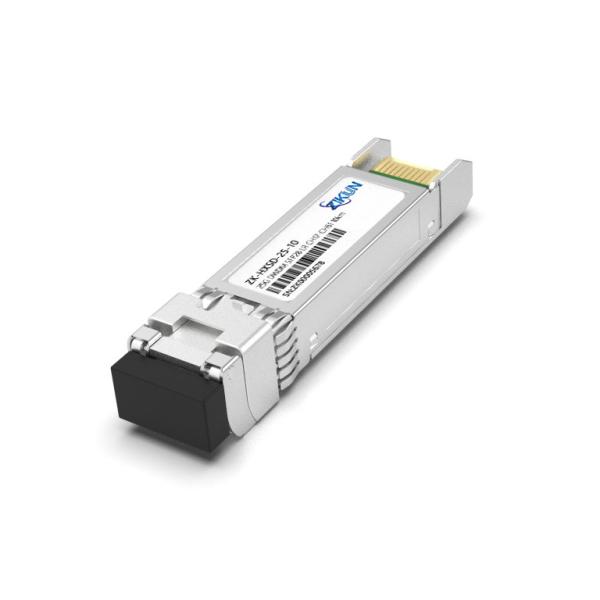

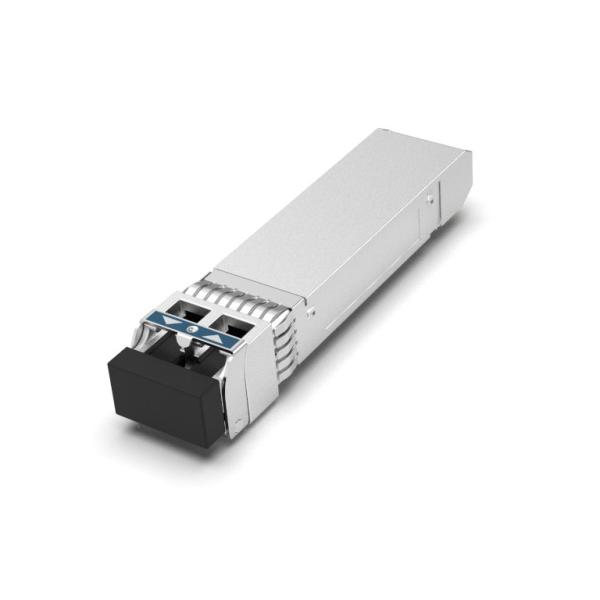

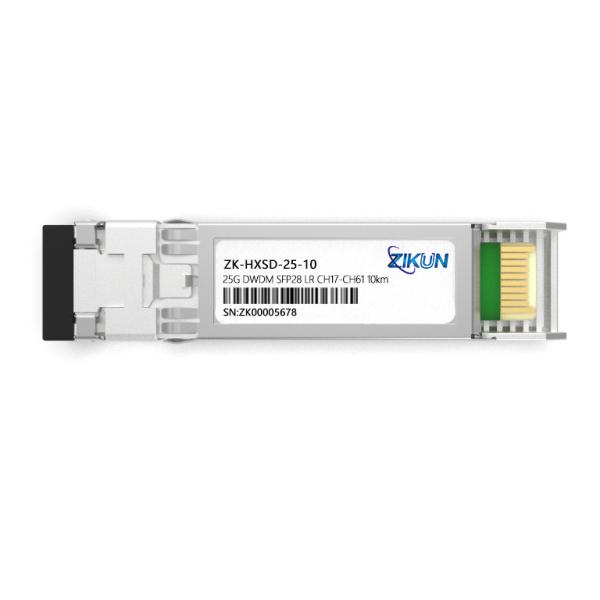

10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
10km 25G SFP28 LR DWDM Module CH17 - CH61 Optical Fiber Optic Transceiver
Specifications
Brand Name :
ZIKUN
Model Number :
ZK-HXSD-25-10
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
Fiber Optic Transceivers
Data Rate (Gb/s) :
25
Channel :
Ch17-61
Reach(km） :
10
LD :
EML
Tx Power (dBm) :
-1 ~4
Rx Sens (dBm) :
< -9
Description

25G DWDM SFP28 LR CH17-CH61 10km SFP Module Optical Fiber Optic Transceiver

Product Features

⚫ Up to 25.78Gb/s data links

⚫ DWDM EML transmitter and PIN receiver

⚫ 100 GHz ITU channel spacing with integrated wavelength locker

⚫ Up to 10km on 9/125um SMF

⚫ Hot-pluggable SFP28 footprint

⚫ Support Digital Diagnostic interface

⚫ Duplex LC/UPC type pluggable optical interface

⚫ RoHS-10 compliant and lead-free

⚫ With CDR function

⚫ Single +3.3V power supply

⚫ Compliant with SFF+MSA and SFF-8472

⚫ Metal enclosure, for lower EMI

⚫ Meet ESD requirements, resist 8KV direct contact voltage

⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C

Ordering Information

Product

Number

Data

Rate

(Gb/s)

Channel

Reach (km)

LD

Tx Power (dBm)

PD

Rx Sens (dBm)

Temperature

(C)

ZK-HXSD-25-10C

25

Ch17-61

10

EML

-1 ~4

PIN

< -9

0~70

ZK-HXSD-25-10I

25

Ch17-61

10

EML

-1 ~4

PIN

< -9

-40~85
