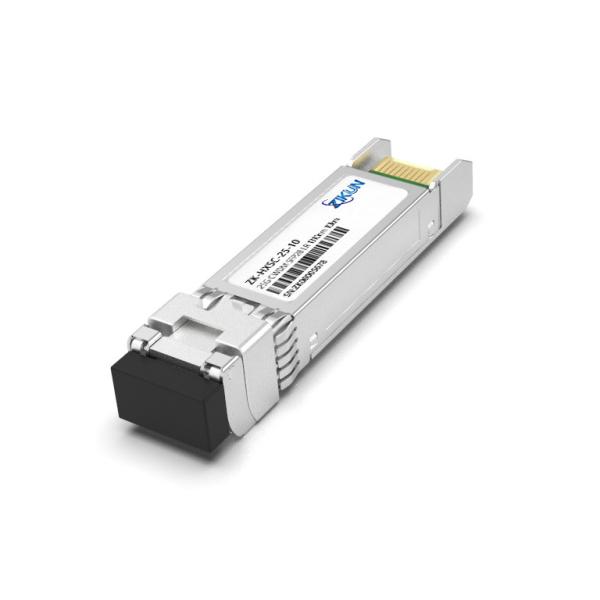

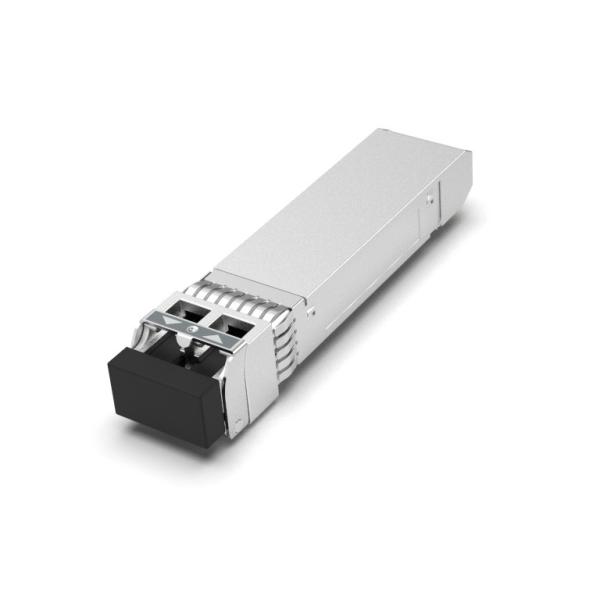

1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
1310nm 10km SFP Module 25G SFP28 CWDM LR Optical Fiber Optic Transceiver
Specifications
Brand Name :
ZIKUN
Model Number :
ZK-HXSC-25-10
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
Fiber Optic Transceivers
Data Rate (Gb/s) :
25
Wavelength (nm) :
1270~1370
Reach(km） :
10
LD :
DFB
Rx Sens （dBm） :
< -14.0
Description

25G CWDM SFP28 LR 1310nm 10km SFP Module Optical Fiber Optic Transceiver

Product Features

⚫ Up to 25.78Gb/s data links

⚫ CWDM DFB laser and PIN receiver

⚫ Up to 10km on 9/125um SMF

⚫ Hot-pluggable SFP footprint

⚫ Digital diagnostic capabilities

⚫ Class 1 laser safety certified

⚫ Cost effective SFP28 solution, enables higher port densities and greater bandwidth

⚫ RoHS-10 compliant and lead-free

⚫ Single +3.3V power supply

⚫ 2-wire interface for management specifications compliant with SFF-8472

digital diagnostic monitoring interface for optical transceivers

⚫ All-metal housing for superior EMI performance

⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C

Ordering Information

Product

Number

Data Rate (Gb/s)

Wavelengt h (nm)

Reach (km)

LD

Tx Power (dBm)

PD

Rx Sens (dBm)

Temperatur e (C)
ZK-HXSC-25-10C

25

1270~1370

10

DFB

 -7.0~2

PIN

< -14

0~70
ZK-HXSC-25-10I

25

1270~1370

10

DFB

 -7.0~2

PIN

< -14

-40~85
