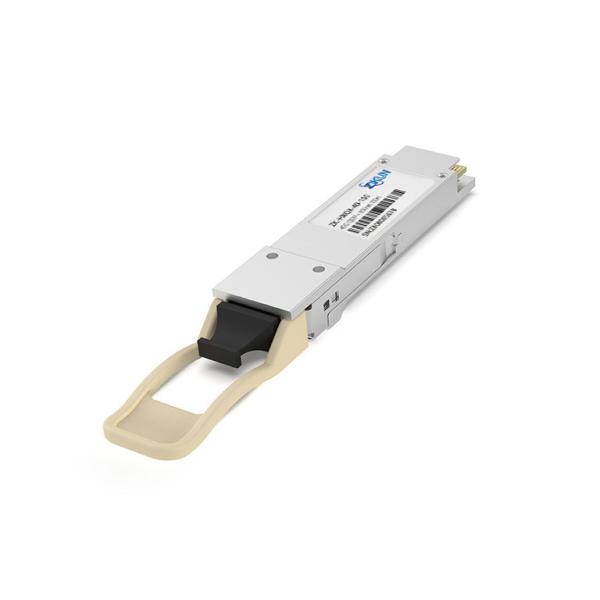

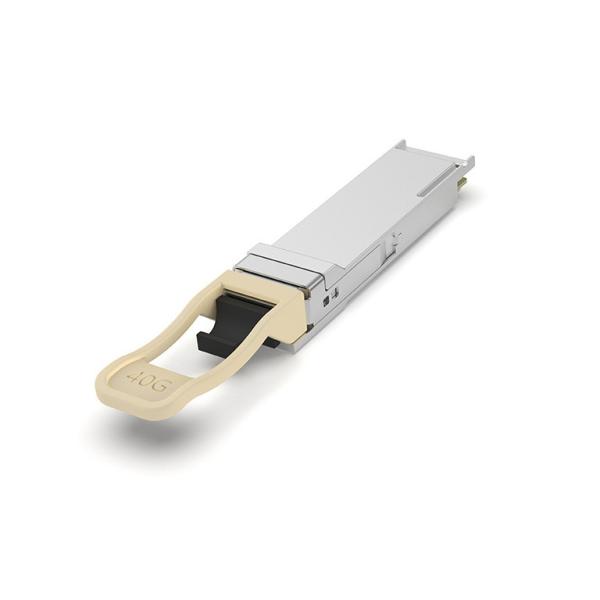

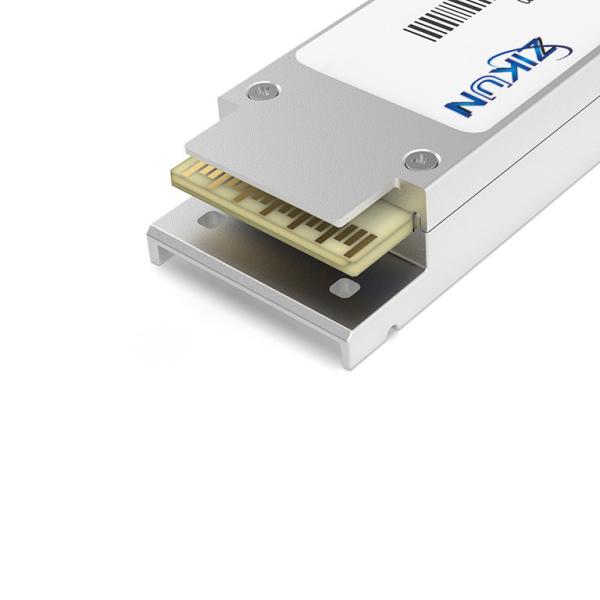

VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
VCSEL LD SFP Module 850nm 100m Fiber Optic 40G QSFP+ Transceiver
Specifications
Brand Name :
ZIKUN
Model Number :
ZK-HXQX-40-100
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
Fiber Optic Transceivers
Data Rate (Gb/s) :
40
Wavelength (nm) :
850
Reach(km） :
100
LD :
VCSEL
Tx Power (dBm) :
-7.6~0.5
Rx Sens (dBm) :
< -9.5
Description

SFP Module 40G QSFP+ 850nm 100m Optical Fiber Optic Transceiver

Product Features

⚫ 4 independent full-duplex channels

⚫ Up to 11.2Gb/s data rate per channel

⚫ High Reliability 850nm VCSEL technology

⚫ MTP/MPO optical connector

⚫ QSFP+ MSA compliant

⚫ Electrically hot-pluggable

⚫ Up to 100m transmission on OM3 multi-mode fiber or 150m links on OM4

multimode fiber

⚫ RoHS-10 compliant and lead-free

⚫ Digital diagnostic capabilities

⚫ Single +3.3V power supply

⚫ Maximum power consumption 1.5W

⚫ All-metal housing for superior EMI performance

⚫ Case operating temperature : 0°C to +70°C

Ordering Information

Product

Number

Data

Rate

(Gb/s)

Wavelength

(nm)

Reach (m)

LD

Tx Power (dBm)

PD

Rx Sens (dBm)

Temperature

(C)

ZK-HXQX-40-100C

40

850

100

VCSEL

-7.6~0.5

PIN

< -9.5

0~70
