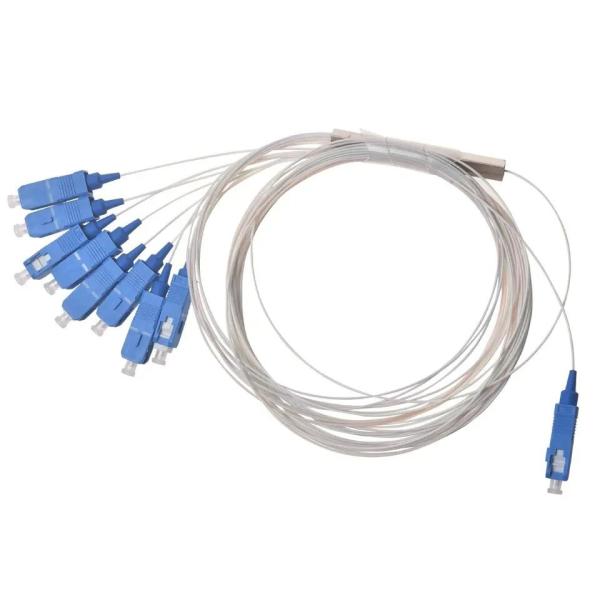

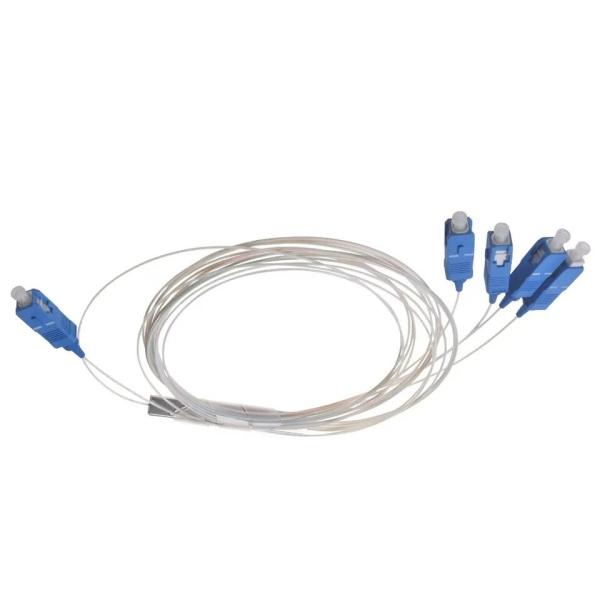

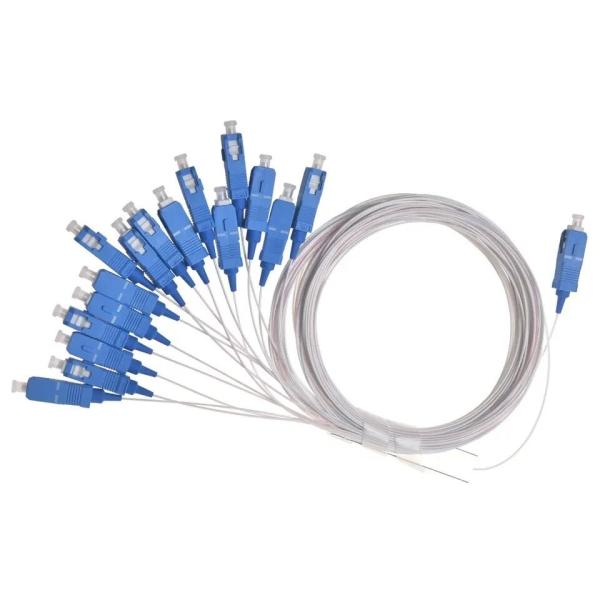

FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
Specifications
Brand Name :
ZIKUN
MOQ :
1-200
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-7work days
Model Number :
PLC splitter
Type :
PLC splitter, Fiber optic splitter
Use :
FTTH FTTX
Fiber Type :
G657A or customized
Fiber Length :
1m or Customized
Certification :
CCC, RoHS, ce
Description

PLC Splitter SC/APC connector 1x2 1x4 1x8 1x16 1m Steel-tube Fiber Optical

1. passive optical plc splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

2. Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Application

*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

FTTH FTTX PLC Fiber Optic Splitter 1x2 1x4 1x8 1x16 SC / APC Connector
Parameters
1×2
1×4
1×8
1×16
1×32
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
Loss Uniformit(dB)
0.6
0.6
0.8
1.2
1.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
Return Loss(dB)(P/S Grade)
55
55
55
55
55
Directivity(dB)
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.5
0.5
0.5
0.8
0.8
Temperature Stability (-40~85℃)(dB)
0.5
0.5
0.5
0.8
0.8
Operating Temperature(℃)
-40~+85
Storage Temperature(℃)
-40~+85
Device Dimension(mm)
60×7×4
60×7×4
60×7×4
60×12×4
80×20×6
