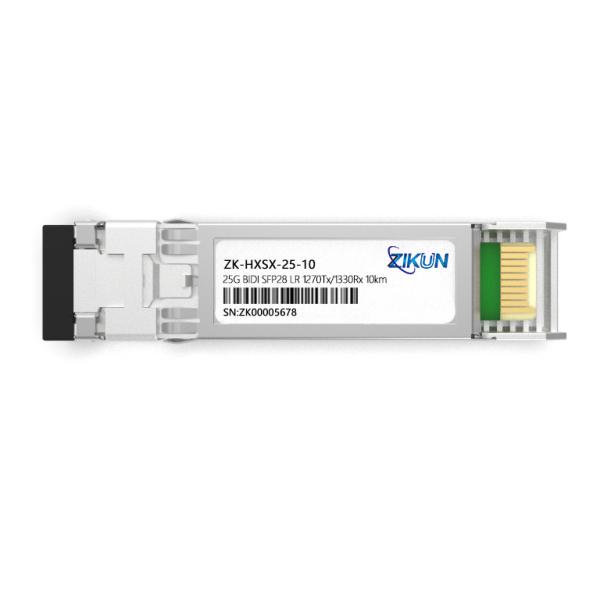

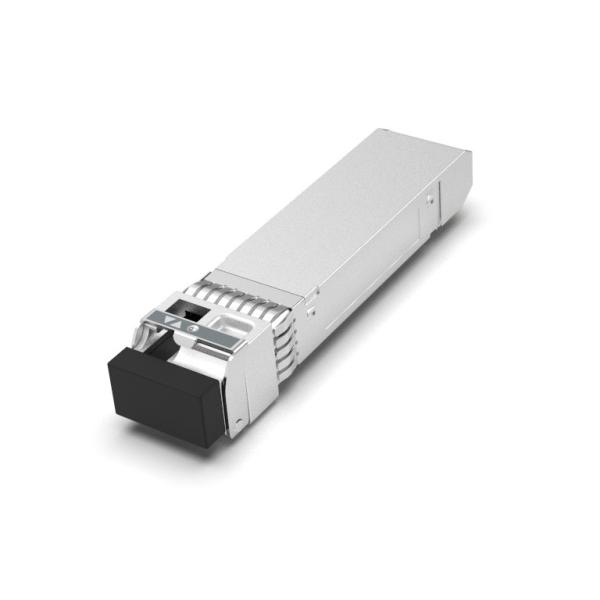

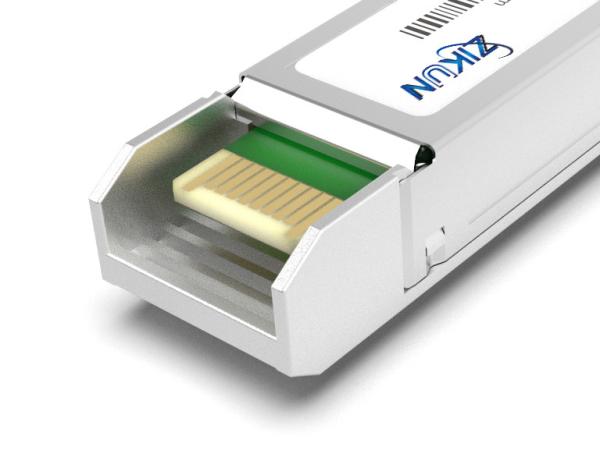

SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
SFP Module 25G BIDI SFP28 LR 1270Tx/1330Rx 10km Optical Fiber Optic Transceiver
Specifications
Brand Name :
ZIKUN
Model Number :
ZK-HXSX-25-10
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
Fiber Optic Transceivers
Data Rate (Gb/s) :
25
Wavelength (nm) :
1270
Reach(km） :
10
LD :
DFB
Rx Sens （dBm） :
< -14.0
Description

25G SFP28 BIDI LR Tx1270/Rx1330nm Optical Fiber Optic Transceiver

Product Features

⚫ Up to 25.78Gb/s data rate

⚫ 1270nm DFB laser and PIN receiver

⚫ 2-wire interface with integrated Digital Diagnostic capabilities

⚫ Up to 10km transmission on SMF

⚫ BIDI LC optical connector

⚫ Single +3.3V power supply

⚫ RoHS-10 compliant and lead-free

⚫ Compliant with SFF+MSA and SFF-8472

⚫ Maximum power consumption 1.5W

⚫ Metal enclosure, for lower EMI

⚫ Meet ESD requirements, resist 8KV direct contact voltage

⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C

Ordering Information

Product

Number

Data

Rate

(Gb/s)

Wavelength

(nm)

Reach (km)

LD

Tx Power (dBm)

PD

Rx Sens (dBm)

Temperature

(C)

ZK-HXSX-25-10C

25

1270

10

DFB

-7.0~

2.0

PIN

< -14.0

0~70

ZK-HXSX-25-10I

25

1270

10

DFB

-7.0~

2.0

PIN

< -14.0

-40~85
