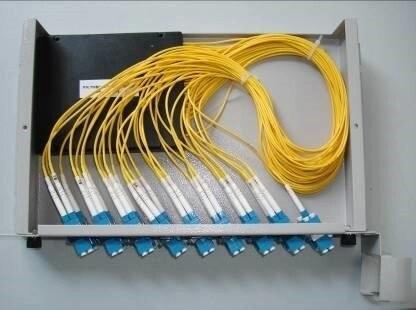

FTTx Frame Type Fiber Optic Splitter PLC 1:N 2:N With SC UPC Connectors
FTTx Frame Type Fiber Optic Splitter PLC 1:N 2:N With SC UPC Connectors
Specifications
Brand Name :
ZIKUN
Model Number :
PLC Splitter
MOQ :
1 - 1000 > 1000
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
High Light :
rame Type Fiber Optic PLC Splitter, FTTx Fiber Optic PLC Splitter, FTTx PLC Splitter With Connector
Product Name :
Frame Type Optical Splitter
Application :
FTTx
Storage Temperature :
-40～+85
Spittle Ratio :
1:N, 2:N
Directivity :
=55dB
Description

Fiber Optic Splitter Frame Type Optical Splitter With SC UPC Connectors


Product Description

Planar Lightwave Circuit (PLC) Splitter is a power splitter based on the silica glass baseplate. There are two types of PLC Splitters which is 1xN and 2xN. It divides uniformly optical signals from one or two inputs to multiple outputs. The splitter can be operated in reverse direction to combine multiple signals into one fiber or two fibers. Numbering is tagged with permanent marking on each output to ease the port identification.



Technical Parameter

Product nameProduct typeSize(width x depth x height)mm
19 inch Frame Splitter Box 1.5UPLC321(SC)487×250×65.5
19 inch Frame Splitter Box 1.5UPLC321(FC)487×250×65.5
19 inch Frame Splitter Box 1.5UPLC321(LC)487×250×65.5



2×N Optical Characteristics of PLC Optical Splitter

ParameterUnitIndex
2×22×42×82×162×322×642×128
Working bandwidthnm1260～1610
Insertion lossdB≤4.0≤7.5≤10.8≤14.1≤17.4≤20.4≤24.0
Polarization related lossdB≤0.3≤0.3≤0.3≤0.3≤0.3≤0.5≤0.5
uniformitydB≤0.8≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
Return lossdB≥55
directivitydB≥55
working/storage temperature℃-40～+85



1×N Optical Characteristics of PLC Optical Splitter

ParameterUnitIndex
1×21×41×81×161×321×641×128
Working bandwidthnm1260～1610
Insertion lossdB≤3.8≤7.2≤10.5≤13.8≤17.1≤20.1≤23.7
Polarization related lossdB≤0.3≤0.3≤0.3≤0.3≤0.3≤0.3≤0.3
uniformitydB≤0.5≤0.6≤0.8≤1.0≤1.5≤2.0≤2.0
Return lossdB≥55
directivitydB≥55
working/storage temperature℃-40～+85
