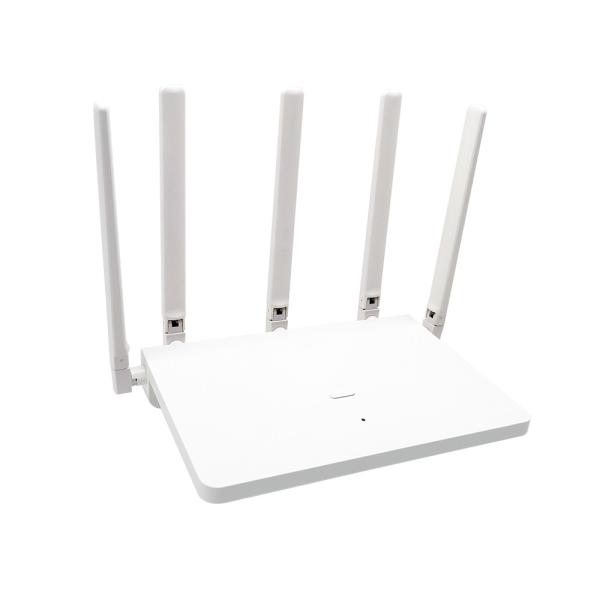

Wireless WiFi Router AX3000 Wifi 6 1GE WAN 3GE LAN ZC-R560E Support Easy Mesh
Wireless WiFi Router AX3000 Wifi 6 1GE WAN 3GE LAN ZC-R560E Support Easy Mesh
Wireless WiFi Router AX3000 Wifi 6 1GE WAN 3GE LAN ZC-R560E Support Easy Mesh
Wireless WiFi Router AX3000 Wifi 6 1GE WAN 3GE LAN ZC-R560E Support Easy Mesh
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-R560E
MOQ :
1-200
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-7 work days
Flash :
128MB
Memory :
256MB
Antenna :
5*External Antennas
Size :
21.5*16.3*5cm
Certification :
CE, RoHS
Port :
1GE WAN+3GE LAN
Description

Wireless WiFi Router AX3000 Wifi 6 1GE WAN 3GE LAN ZC-R560E Support Easy Mesh

The AX3000 dual-band WiFi6 wireless router reaches speeds of up to 3 Gbps, for a buffer-free 4K/HD streaming and gaming experience. The WiFi6 router lets you connect even more devices via OFDMA technology, minimizing network congestion that occurs with too many connected devices. Intel's dual-core processor effortlessly handles all your streaming, gaming and smart home devices.

1GE WAN+3GE LAN+AX3000 WiFi 6 ZC-R560E Wireless Router adopt WiFi6 technology which has redefined home WiFi. Experience up to 3x faster speeds, higher capacity, and reduced congestion overall compared to the previous AC WiFi5 standard.

Wireless WiFi Router AX3000 Wifi 6 1GE WAN 3GE LAN ZC-R560E Support Easy Mesh

Hardware Parameters

CPU

CPU:RTL8198D

WiFi Chip: RTL8192XBR+RTL8832CR
FLASH Size 256MB
DDR Size 128MB
2.4G WiFi 2*2(Support IEEE 802.11b/g/n/ax ,Rate Up to 576Mbps)
5G WiFi 2*2(Support IEEE 802. 11a/ac/ax ,Rate Up to 2400Mbps)

Antenna

 WiFi 2.4G:2 x 5dBi External Antennas
WiFi 5G:3 x 5dBi External Antennas

Interfaces

Ethernet

 3x 10/ 100/ 1000M LAN interface(Auto MDI/MDIX)
1x 10/ 100/ 1000M WAN interface(Auto MDI/MDIX)
LEDs POWER ,Status
Button 1x Reset Button
WPS Button 1x WPS button(Mesh Button)
DC Input DC input 12V

Software Function

WAN Function 1x GE Ethernet WAN
Support Router mode and Bridge Mode
Support Mesh Client and Repeater Mode
WAN connection type : DHCP, PPPoE,Static IP

Firewall

 Basic Firewall Functions and ALG
DMZ ,Port Mapping, Port Forwarding ,Virtual Server
DDNS
URL Filter
Support QoS
Support WiFi AP/Repeater Mode

Remote

Management

Function

 On-line Device Management
Uploading, storing, and presenting equipment operating parameters, network quality diagnostic data, and logs
Provide a web management backend for device management and policy Routing configuration
FOTA
Mesh Function Support Easy Mesh
