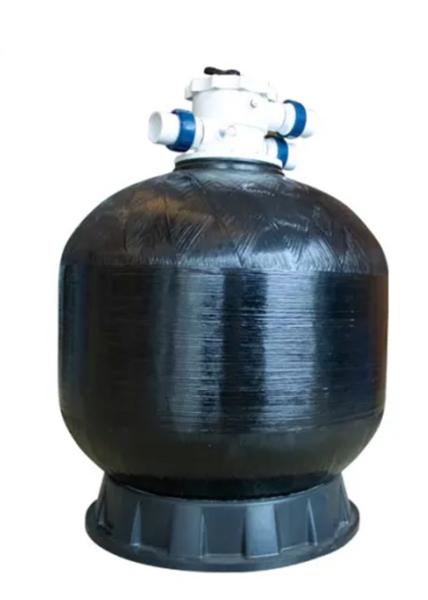

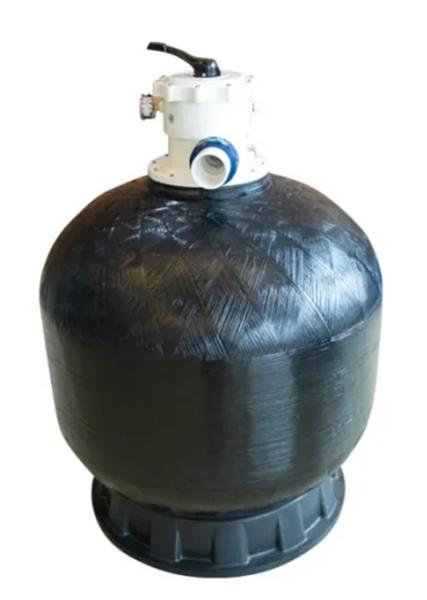

400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
Specifications
Brand Name :
ZOKO
Place of Origin :
China
MOQ :
1 set
Price :
Negoation
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per year
Delivery Time :
3-8 months
Packaging Details :
Follow the packing standard of sea shipment
product name :
Top-mount quartz sand filter
port size :
1.5/2.0 inch
flow rate :
8-42m³/H
filtration area :
0.13-1.13m²
diameter :
400-1200mm
application :
pool water purification
Description

Made by advanced technology, the glossy sand filter series appeared quiet smooth and bright, the surface has UV-proof function, which can also withstand acid, alkalis and high temperature. As a new produced environment-friendly product, it's really the first choice for any swimming pools.

So far, most of the swimming pool uses traditional sand filter, it filled by quartz inside as the filter media to prevent water suspended substance and impurity into the pool. Given that traditional sand filters cleaning itself by reversing the flow and use backwash to flush dirty from valve, but it can not completely discharge the dirty on the bottom. In fact it did harms to the water quality and affect human health.So it's more completely purifying the swimming pool water.

Model Diameter (mm) Pipe Size (inch) Flow (m3/h) Filtration Area
(m2)		 Overall Height
(mm)		 Silica
Sand
(kg)		 NW
(kg)		 GW
(kg)
ST400 400 1.5" 8 0.13 680 35 7.3 9.8
ST450 450 1.5" 10 0.16 740 50 8.8 11.8
ST525 525 1.5" 12 0.19 865 65 11.8 15.8
ST600 600 1.5" 14 0.22 885 115 14.5 19
ST650 650 1.5" 17 0.32 950 145 17.7 23.2
ST700 700 1.5" 19 0.35 970 180 20 25.5
ST750 750 2.0" 21 0.40 1080 225 22.8 29.8
ST800 800 2.0" 24 0.50 1130 275 25.9 33.4
ST900 900 2.0" 30 0.64 1215 390 32.7 42.2
ST1050 1050 2.0" 38 0.88 1380 615 50.9 56.4
ST1200 1200 2.0" 42 1.13 1515 920 57.6 63.2


1). Made of fiberglass.
2). Transparent lid cover allows easy inspection of the sand bed.
3). Top diffuser ensures even distribution of water over the top of the sand bed.
4). Air release valve enables easy release of trapped air during opertation of the filter.
5). Materials used are dependable, non corrosive and are suitable for all weather performance.
6). Large sand. Water drain for rapid wintertime or servicing.
7). Easy to use water drain plug and multi-port valve lets you select any of the valves/filter operation with a simple lever-action.
8). UV resistance.

400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter

400-1200mm Diameter Swimming Pool Top-Mount Quartz Sand Filter
