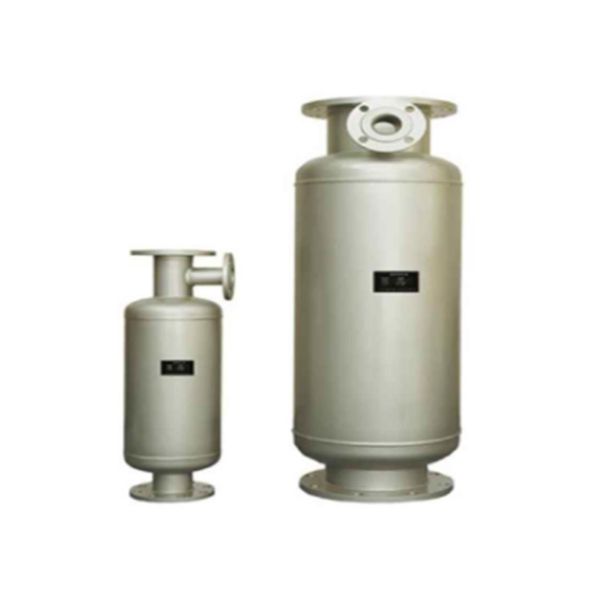

Chloride Double Corrosion Static Pipe Mixer , High Performance Ozone Static Mixer
Chloride Double Corrosion Static Pipe Mixer , High Performance Ozone Static Mixer
Chloride Double Corrosion Static Pipe Mixer , High Performance Ozone Static Mixer
Chloride Double Corrosion Static Pipe Mixer , High Performance Ozone Static Mixer
Chloride Double Corrosion Static Pipe Mixer , High Performance Ozone Static Mixer
Chloride Double Corrosion Static Pipe Mixer , High Performance Ozone Static Mixer
Specifications
Brand Name :
ZOKO
Model Number :
ZOKO-HH
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per year
Delivery Time :
3-8 months
Packaging Details :
Follow the packing standard of sea shipment
product name :
ozone pipeline static mixer
material :
stainless steel
color :
silver
length :
800-1300mm
quality :
high anti-corrosion performance will ensure its durability
application :
in order to allow the ozone to fully mix and dissolve
Description

316L stainless steel 0.6MPa Ozone Pipeline Static Mixer SVX corrugated sheets

Equipment features

In order to allow the ozone to fully mix and dissolve before entering the reaction tank and enhance the disinfection effect, a pipeline static mixer should be installed. The mixing process is completed by the mixing element. When the air-water mixture flows in the pipe, it will impact various plate elements and constantly changes the flow direction, thus creating a good radial mixing effect. At the same time, the rotation of the fluid itself also occur at the interface of the adjacent element. This perfect radial circulation mixing effect causes the non-soluble substances to cut, shift, rotate, overlap, etc. Thereby they will have a good mixing effect and the ozone and water will further integrate.

The internal structure of the ZOKO-HH series pipeline static mixer is assembled with SVX proprietary corrugated sheets.

It can make different fluids flow in a Z-shape in three-dimensional space. They are dispersed and evenly mixed. The non-uniformity coefficient in the mixing process is small and there is no amplification effect. It has good corrosion resistance, high strength, beautiful appearance, convenient installation, fast and efficient mixing, low energy consumption and so on.

ZOKO-HH series pipeline static mixer technical standard
Material 316L stainless steel resistant to ozone and chloride double corrosion
Pressure The design pressure is 0.6Mpa, the test pressure is 1.5 times design pressure
Inner structure SVX corrugated sheets
Caliber DN100-400
Length 800-1300mm
Installation method Standard flange connection
Certification 4 years
Service life of the equipment Over 50 years

Model Design pressure (MPA) Caliber Length(mm) Installation method
ZOKO-GH50

0.60

 DN50 500-600 Standard flange connection
ZOKO-GH80 DN80 600-800 Standard flange connection
ZOKO-GH100 DN100 800-1000 Standard flange connection
ZOKO-GH125 DN125 1000-1200 Standard flange connection
ZOKO-GH150 DN150 1000-1200 Standard flange connection
ZOKO-GH200 DN200 1000-1200 Standard flange connection
ZOKO-GH250 DN250 1200-1400 Standard flange connection
ZOKO-GH300 DN300 1200-1400 Standard flange connection
ZOKO-GH350 DN350 1300-1500 Standard flange connection
ZOKO-GH400 DN400 1300-1500 Standard flange connection
