Specifications
Brand Name :
OEM / ODM
Model Number :
HGD-2F/AC1 -GFCI20
Certification :
UL / CUL, ISO9001
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
50000pcs per month
Delivery Time :
5-20 workdays upon receipt of deposit
Packaging Details :
1set in one color inside box, 20pcs per standard export carton.
Product Name :
pop up floor receptacle
Material :
Aluminium alloy
Application :
Residential / General
Surge Protection :
Yes
Grounding :
2-Pole,3-Wire Grounding
Color :
Silver
GFCI :
available
current :
20A
Description

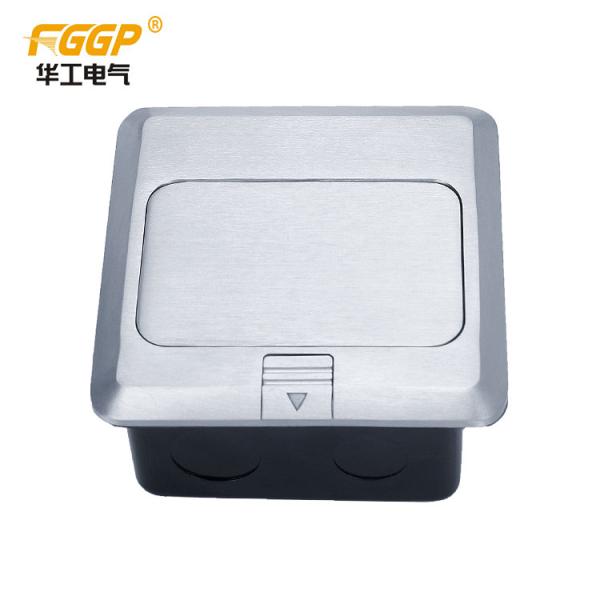

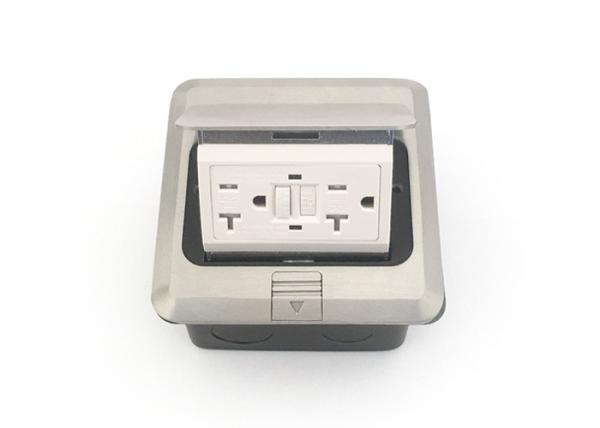

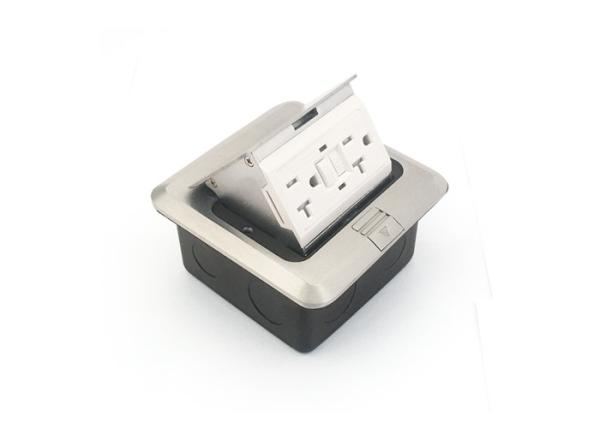

Damped Pop Up Floor Socket With 20A 125V 60Hz 2015 UL / CUL Listed White GFCI Tamper Resistant

Features:

The product is installed on floors in home, office, school room, meeting room etc. The product adopts the bracket with detachable structure to make the assembly and disassembly of the functional parts more convenient.

Product Parameter:

1 Material of Face-plate: Alu. alloy
2 Colour of Face-plate: Silver gray
3 Processing Technic of Face-plate: Die-casting / Polishing / Wire-drawing / Spray Painting
4 Panel size: 120 x 120mm
5 Steel box size: 100 x 100 x 55mm
6 Box material / thickness: QR35A cold-rolled steel /1.2mm
7 Cutout size: 105 x 105mm
8 Bracket material: Zinc copper alloy
9 Current-carrying components: Phosphor Bronze jack strips Qsn6.5-0.1
10 Material of Plastic: Top class PC
11 Module capacity:

3 modules

12 Level of Protection: IP20
13 Certificate: UL / CUL, ISO9001
14 Openning mode: Soft pop-up type
15 Whether accepting OEM or not: Yes, OEM or ODM service

Functional accessories:

The product can be fitted with 1 piece of 45 x 45 mm function accessories of the standard of British (UK), American(USA), European(EU), Germany, French, Australian(AU), Israeli, Multi-functional (Universal) and 1 piece of 45 x 22.5 mm data jack. You can also provide functional parts to us by yourselves, we'll help to fit with our Pop Up Floor Socket in free of charge.

Damped Double Floor Socket 20A 125V 60Hz Recessed Electrical Floor PlugsDamped Double Floor Socket 20A 125V 60Hz Recessed Electrical Floor Plugs

Optional Model:

Item No.: HGD-2FCC1 HGD-2FCC1-D HGD-2FAC1 HGD-2FAC1-D
Material of Panel Cover: Brass alloy (Golden) Alu.alloy (Silver)
Damper Device: Normal Pop-up Soft Pop-up Normal Pop-up Soft Pop-up


Packing Details

Item No. HGD-2FCC1 HGD-2FCC1-D HGD-2FAC1 HGD-2FAC1-D
Packing: one set in one Color Inside Box
Carton Qty: 20pcs
CTN SIZE: 41X26X27CM
Gross.Weight: 16.5KGS 18.5KGS 15KGS 17KGS



Outline dimensions:
Damped Double Floor Socket 20A 125V 60Hz Recessed Electrical Floor Plugs

FAQ:

Q: Why choose FGGP? Any advantages?
A: Yes. Here’s what we have:
(1) Mutual benefit : We are factory also have 15 years experience in manufacturing and developing of the Sockets for Floor and Table Tops, our price will be cheaper in the same quality.
(2) Customize : We have strong R&D team, can custom product as your request.
(3) Free OEM service : (a) Laser –printing your Logo(≥1PC); (b) Molded pressing your Logo(≥1000PCS); (c) Design your color box(≥500-1000PCS).
(4) Mix order : We accept mix order, different model and small quantity order.
(5) After service: (a) 3 Year Guarantee. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.

Q: Can I order one piece for sample or trial order less than MOQ to test the quality?
A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ with a little higher price.

Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: Yes, you can email to us for getting the catalogue and price list in MOQ quantity.

Q: If I want cheaper quality, can you produce?
A: Yes, if the qty is big enough, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.

Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

Q: What certificate do you have?
A: We have got CE, SAA, Rohs, Reach, UL&Cul for different products, and we have certified by ISO9001 Quality Management System since Jan.07,2010.


If you have any other question, pls feel free to contact us.
