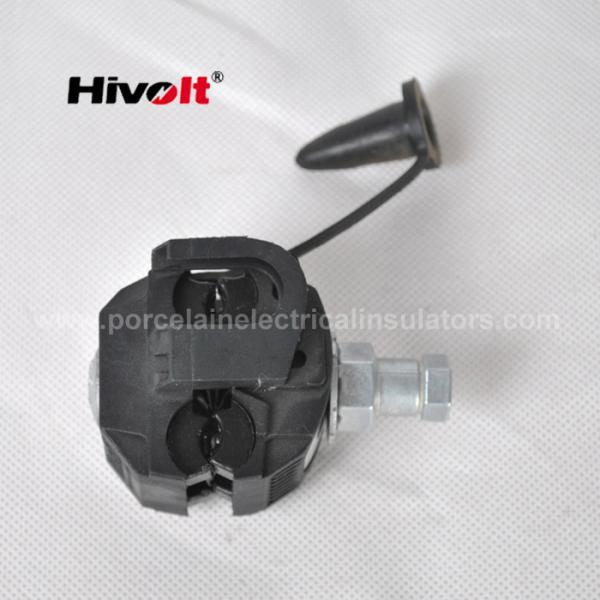

High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
High Reliable Insulation Piercing Connector / Metal Cable Clamps For Distribution Lines 1kV Cables
Specifications
Brand Name :
HIVOLT
Model Number :
N/A
Certification :
CE/SGS
Place of Origin :
CHINA
MOQ :
500
Price :
USD 1 to USD10 per unit
Supply Ability :
50,000pcs per month
Packaging Details :
wooden pallet
material :
steel with plastic surface
type :
N/A
surface treatment :
plastic
mechanical strength :
N/A
Description

insulation piercing connectors cable clamp with insulation surface, suitable for cable with section area 16~95mm2

Description:

High quality based on long-term international experience , we has thorough knowledge in designing and producing accessories for electricity distribution networks. This, together with our long experience in varying conditions throughout the world, has resulted in the arrival of the new connector serious products. The connectors are flexible and widely usable - also in demanding circumstances. connectors meet the most demanding national and international standards. The connector products are the first watertight, low voltage connector series designed and tested according to the new EN50483 standard.

Technical specification

Dimensions
Main Cable Line: 15-93mm²
Branch Cable Line: 4-55mm²
Norminal Current: 130A
Piercing Depth: 2.3-3.2mm
Weight: 112g
Features
Bolt: M8*65
Mechnical
Tightening Torque:

25Nm

Cable Size:16-95mm² to 4-50mm²
insulated piercing connectors are used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Insulation Piercing Connector for up to 50mm Aluminium or Copper Cable

Main Conductor: 10 - 50mm
Branch Conductor: 1.5 - 10mm
Use for connection when using insulated
Aluminium or copper conductors up to
1000VAC
Connector's design enable hot line installation without peeling insulation
from conductor EN50483-4:2009, Connector class: A1 13mm Hexagonal Socket Wrench required.

Applications:

Suitable for distribution lines 1kV cables .

competitive Advantage:

High reliable mechanical & electrical performance , we offer 1 years up to 3 years quality guarantee . high quality deserve your trust !
