Specifications
Brand Name :
HIVOLT
Model Number :
N/A
Certification :
CE/SGS
Place of Origin :
CHINA
MOQ :
500
Supply Ability :
50,000pcs per month
Packaging Details :
wooden pallet
material :
steel with plastic surface
type :
N/A
surface treatment :
plastic
mechanical strength :
N/A
Description

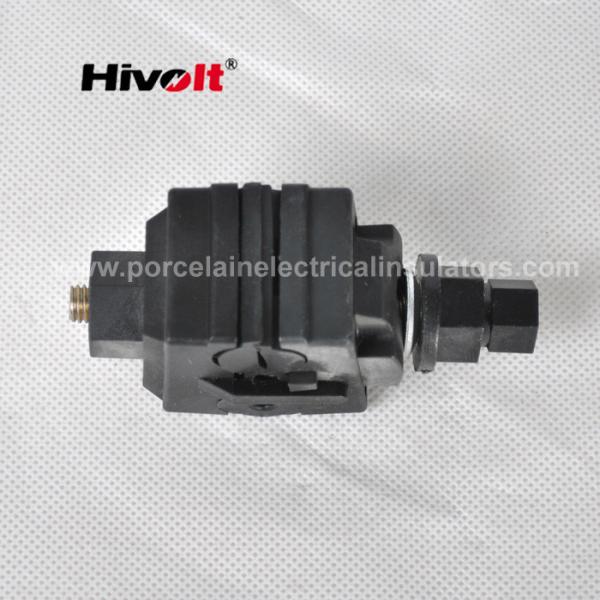

cable clamp with insulation surface, easy use and high reliable performance Insulation Piercing Connectors

Description:

Technical specification

Dimensions
Main Cable Line: 16-95mm²
Branch Cable Line: 4-50mm²
Norminal Current: 132A
Piercing Depth: 2.5-3.5mm
Weight: 132g
Features
Bolt: M8*70
Mechnical
Tightening Torque:

20Nm


Cable Size:16-95mm² to 4-50mm²
Description:The KW2-95 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Applications:

Suitable for distribution lines 1kV cables .

competitive Advantage:

High reliable mechanical & electrical performance , we offer 1 years up to 3 years quality guarantee . high quality deserve your trust !
