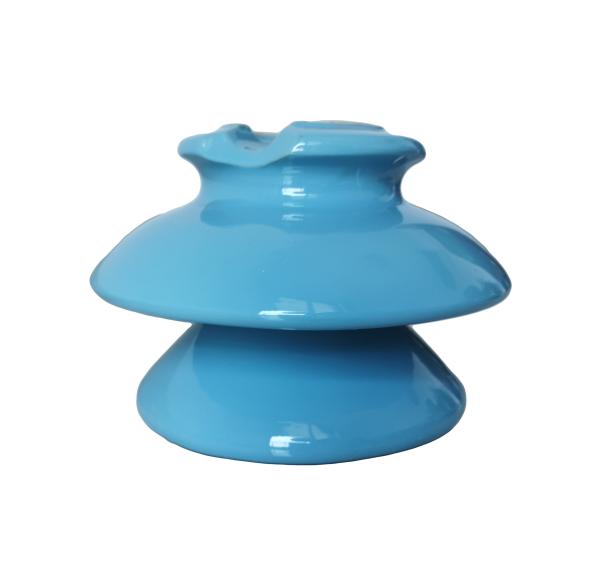

Blue 36kV Porcelain Pin Insulators For Distribution Lines
Blue 36kV Porcelain Pin Insulators For Distribution Lines
Blue 36kV Porcelain Pin Insulators For Distribution Lines
Blue 36kV Porcelain Pin Insulators For Distribution Lines
Specifications
Brand Name :
CPE
Model Number :
36kV
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN CRATE
Color :
Blue
Material :
Porcelain C-110
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Product name :
Spool porcelain insulator
Sample :
Provided
Oem :
YES
Description

High voltage distribution lines Pin type porcelain insulator in blue color

Descriptions:

ANSI CLASS Creepage distance (mm) Dry arcing distance (mm) Cantilever strength(kN) Low frequency punture voltage(kV) Low frequency flashover voltage(kV) Weight (kg)
Dry(kV) Wet(kV)
56-4 686 286 13 185 140 95 12.5

Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.

Features:

1.good service and quality

2.competitive price

3.large production capacity

4.delivery on time

5. accept customers' design

Competitive Advantages:

we offer 1 years up to 2 years quality guarantee for our product .

The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

OEM design are available .

We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specifications .
