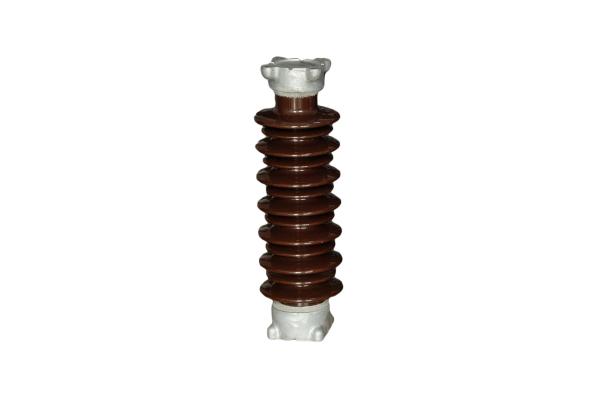

Professional OEM 30kg Solid Core Station Post Insulator
Professional OEM 30kg Solid Core Station Post Insulator
Professional OEM 30kg Solid Core Station Post Insulator
Professional OEM 30kg Solid Core Station Post Insulator
Professional OEM 30kg Solid Core Station Post Insulator
Professional OEM 30kg Solid Core Station Post Insulator
Specifications
Brand Name :
CPE
Model Number :
TR-216
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN CRATE
Color :
Brown, Gray
Material :
Porcelain C-120
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Sample :
Provided
Oem :
YES
Pack :
Standard export packing
Description

Professional Ceramic Distribution line Soild-Core Station post insulator

Description:

We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.

Specifications:

ANSI CLASS Creepage distance (mm) Torsion strength (N.m) cantilever strength (kN) Lower frequency flashover voltage Critical impulse flashover voltage Impulse withstand voltage (kV) Weight (kgs)
Dry(kV) Wet(kV) Positive (kV) Negative (kV)
TR-216 1829 1695 6.7 235 180 390 475 350 30

Features:

1. Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.

2. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.

3. Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.

Competitive Advantages:

We offer 1 years up to 2 years quality guarantee for our product.

The insulator finish are smooth and shinning, it has very good self-cleaning performance and easy for maintenance.

OEM design are available.
