Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Semi Conductive Glaze ANSI 55-5 Pin Type Insulator
Specifications
Brand Name :
CPE
Model Number :
55-5
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN CRATE
Color :
Brown
Material :
Porcelain C-110
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Sample :
Provided
Oem :
YES
Description

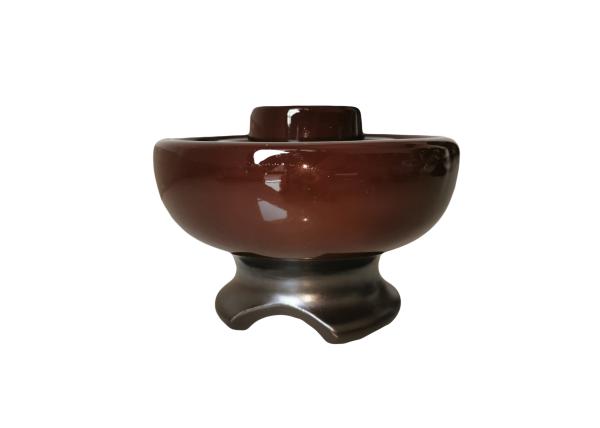

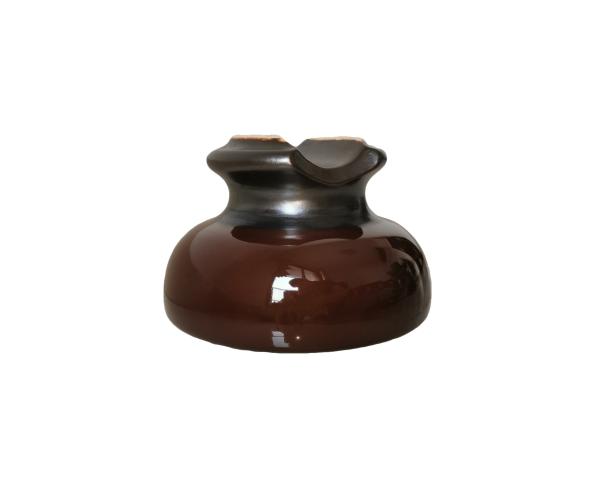

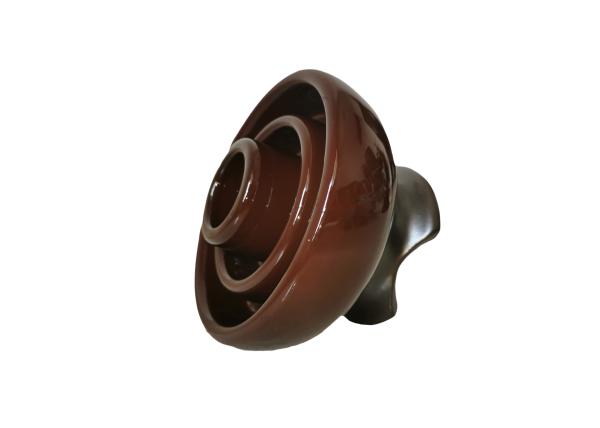

ANSI Standard 55-5 pin type porcelain insulator with semi-conductive glaze

Destriptions:

Our company focus on electric products, marketing, services and logistics. It is an important manufacturer and export trader with several decades of experience in designing, researching, manufacturing, testing and logistics.

Specifications:

ANSI CLASS Creepage distance (mm) Dry arcing distance (mm) Radio interference voltage(kV) Critical impulse flashover voltage Lower frequency flashover voltage Cantilever strength(kN)
Positive(kV) Dry(kV) Wet(kV)
55-5 305 159 15 130 80 45 13


Instructions:

1. We can supply insulators according to IEC standards, ANSI standards, BS standards or customers' specifications.
2. Porcelain glaze color can be made as brown and gray.


Competitive Advantages:

1. We offer 1 years up to 2 years quality guarantee for our product .
2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.
⒊ OEM design are available.
