Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Porcelain OEM Draw Lead Bushing For Distribution Transformers
Specifications
Brand Name :
CPE
Model Number :
200A
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN PALLET
Color :
Brown
Material :
Porcelain C-110
Application :
Transmission and distribution of electric power
Standard :
IEC
Sample :
Provided
Oem :
YES
Size :
Customized Size
Pack :
Standard export packing
Description

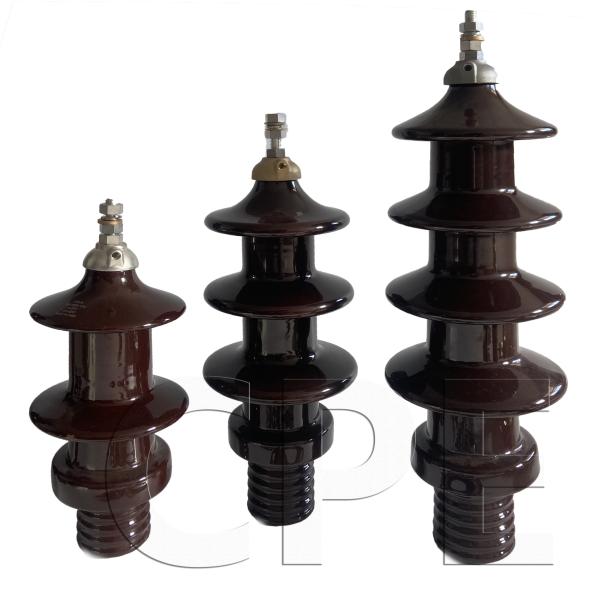

LV Transformer Porcelain Bushing for oil type distribution transformers

Description:

IEC CLASS Upper height(mm) Lower height(mm) Lower dia.(mm) Color
200A 58 39 46 Brown

The transformer bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.

Applications:

At present,the bushing are mainly configured with copper conductor or aluminum conductor,in which the aluminum conductor is cheaper but with equal performance.

Ordering instructions:

1.If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.

Competetive Advantage:

1. we offer 1 years up to 2 years quality guarantee for our product.

2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

3. OEM design are available.
