Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Specifications
Brand Name :
CPE
Model Number :
INK20
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN CRATE
Color :
Light gray， brown
Material :
Porcelain C-120
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Sample :
Provided
Oem :
YES
Pack :
Standard export packing
Description

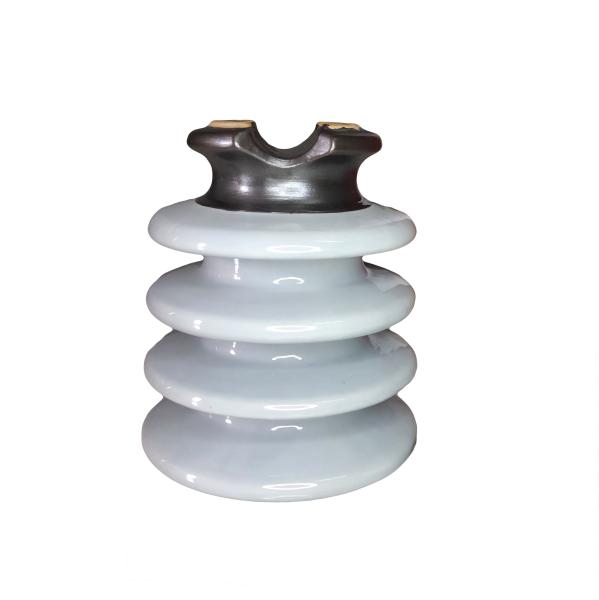

Line Post For Distribution Lines INK20 Iron Hot Deep Galvanizd

Description:

Line post porcelain insulators shall conform in all respects to the requirements of ANSI standard. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed. If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973). Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.

Distribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Specifications:

Dimensions in mm

type H B h. a c d e m
INK 20 305 170 108 51 75 21 77 24


Applications:
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.

Distribution Line Iron Porcelain Post Insulator Hot Deep GalvanizedDistribution Line Iron Porcelain Post Insulator Hot Deep Galvanized
Features:

Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
