ODM Porcelain Post Insulator For Electric Power Transmission Distribution
ODM Porcelain Post Insulator For Electric Power Transmission Distribution
Specifications
Brand Name :
CPE
Model Number :
ANSI 57-34
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN CRATE
Color :
Brown
Material :
Porcelain C-120
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Sample :
Provided
Oem :
YES
Pack :
Standard export packing
Description

ODM Porcelain Line Post Insulator 57-34 ANSI 29.7in brown color

Descriptions:

We offers a wide range of porcelain station post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.

Specifications:

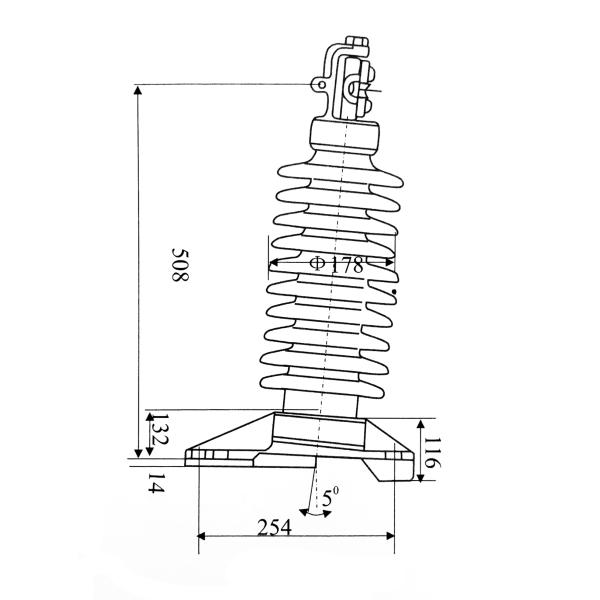

Technical Data Sheet
ANSI CLASS Creepage distance (mm) Dry arcing distance (mm) cantilever strength (kN) Lower frequency flashover voltage(kV) Critical impulse flashover voltage(kV) Test voltage to ground (kV)
Dry Wet Positive Negative
57-34 1016 368 12.5 140 110 230 340 44

ODM Porcelain Post Insulator For Electric Power Transmission Distribution

Application:

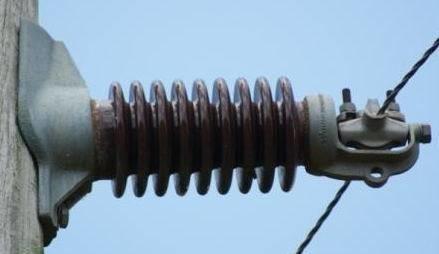

Line post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events.
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.

Competitive advantages:

1

1. Products are producd by ourselves, which ensures competitive prices, good profit margin and flexible services;

2. OEM & ODM services are acceptable and various styles, latest designs are recommended once in a while;

3. We have large market share home and abroad;

4. We have lots of experience in providing good service to retailers. We focus on electric products, marketing, services and logistics. It is an important manufacturer and export trader with several decades of experience in designing, researching, manufacturing, testing and logistics.

Product tags

porcelain power line insulators

,

porcelain station post insulator

,

porcelain station post insulators
