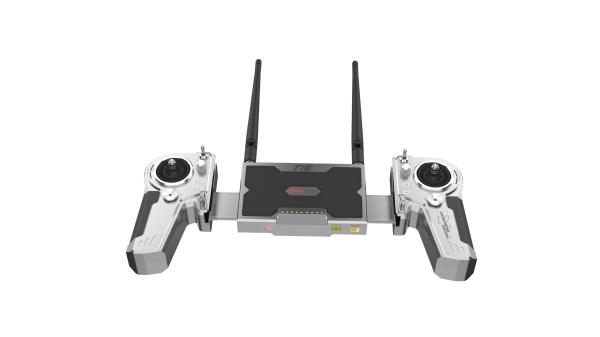

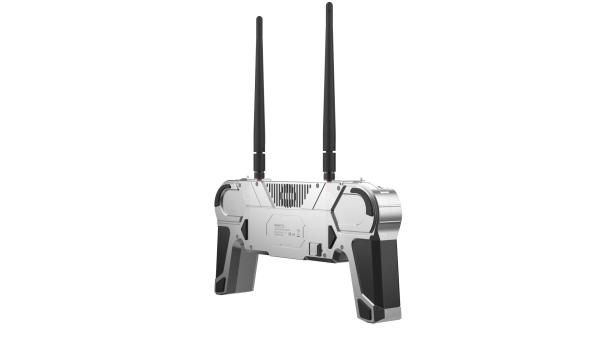

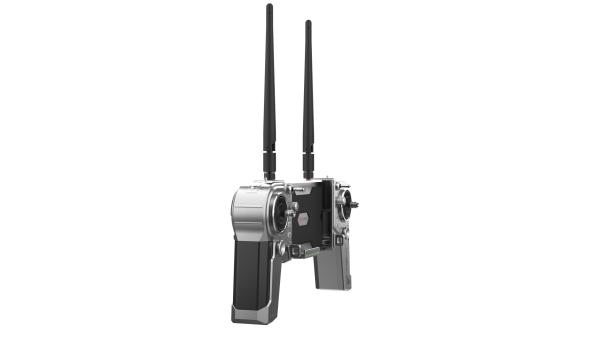

T16 hand held ground control station for UAV (Supporting tablets and mobile device)

T16 is a compact portable GCS that can control the drone and its payload, especially suitable for individual operation. With the extensible design, it supports 5-10.1inch tablet or phone.

With Windows and Android systems, T16 can control the aircraft, the payload, display real-time flight status and remote control status.

Product Features

• Design with main and secondary joysticks
• Programmable dual SBUS independent output, can control both the payload and the drone.
• The physical channel supports USB HID input to the computer, with up to 9 quick buttons available for quick ground station operation.
• 10 linear channels fullfill various control demand.
• Multiple joystick options,left and right handed mode,back center mode,industrial hall effect joystick.
• Remote control,telemetry data,real-time HD video display, suitable for individual operation.
• Up to 8 hours battery capacity,meanwhile supporting external battery powering.
• Universal platform, compatible with most of the flight control systems in the market
• 3 frequency bands integrated into one(800MHz,1.4GHz,2.4GHz),it can modified in the software, communication range:10km+

Remote controller T16

Overall weight: 1060g

Dimension: 290mm*150mm*60mm

Operation temperature: -10~+60℃

IP rating: IP53

RF power: 0.1-0.5w

Remote control latency: 30ms

Ground unit of video link: Built-in

Power supply: 8.4V/6800mAh built-in battery, external battery supported

Endurance: 8h@full battery capacity

Mobile device: Support 5-10.1inch tablet or phone

Operation system: Windows/Android

Remote control range: 10km grade@LOS condition

Channel: 22

Main joystick: 2 (left and right handed mode/back center mode/Hall effect)

Auxiliary joystick: 2

3-position switch: 4

Knob : 2

Key button: 8

Pull wheel: 2

Interface: SBUS port /Dual SBUS ports with HID input

External interface: USB3.0

V21(10Km grade video&data& link)

Frequency: 800MHz(806-826MHz)

1.4GHz(1427.9-1447.9MHz)

2.4GHz(2401.5-2481.5MHz) 3 frequency modules integrated in one, frequency can be modified in the software.

Power voltage: 7.4v-12v XT30

Bandwidth: 3M/5M/10M/20M

Operation current: 300mA@12v power supply

Operation temperature: -10~+50℃

RF power: 0.1w-1w

Antenna: 2-4dB rod antenna

Weight: 110g(exclude antennas)

Dimension: 85mm*55mm*20mm

Video input interface: LAN

Serial port: TTL or RS232

SBUS port: 2pcs
