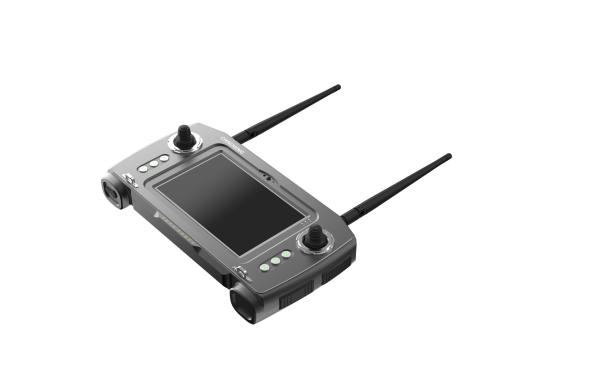

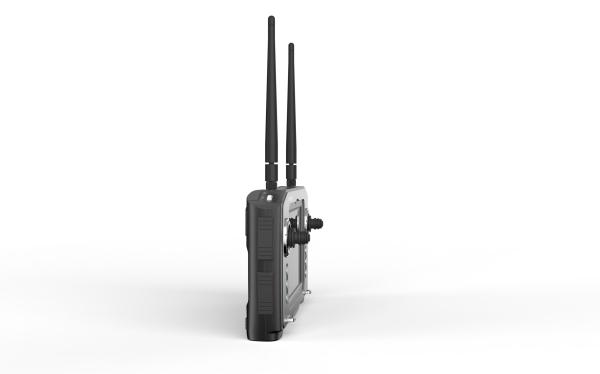

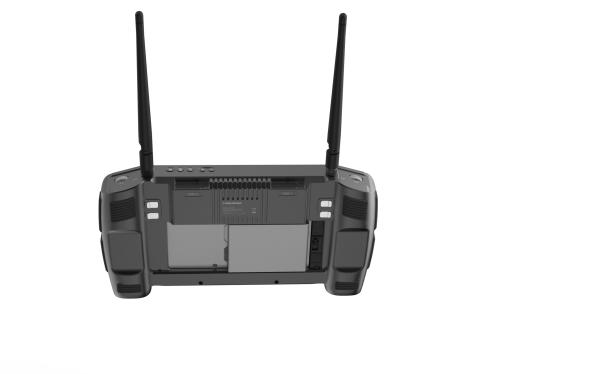

T26 IP65 Rugged Compact Portable Ground Control Station for Defence and Commerical Users

Handheld GCS T26 is based on the Panasonic FZ-M1, a military and professional tablet equipped with MIL-STD-810G and IP65 dust and water-proof design, which enables T26 to work even in the harsh environment. It is especially suitable for defense, commercial applications that have a high standard for the whole system.

To ensure high-performance and convenient operation, features of T26 include sunlight-readable, multi-touch display, lightweight, 16 physical channels, window 10 operating system, and strong hardware enabling the scalability.

The built-in large-capacity battery enables it to work for 9hs continuously. It provides great convenience for the pilot in the field operation.

With an overall weight of only 1.5kg, the T26 portable ground control station is a universal ground control station, which can work with most open-source flight controls and any type of UAV, UGV, USV, and other remote-controlled vehicles.

Performance upgrade

• Integration of Panasonic is three computers FZ-M1
• The original 10 Windows system

• Video & telemetry & RC& computer in one, 3 frequency modules in one

• Sunshine readable, brightness 800nits
• IP65 rating

• Aviation grade aluminum shell, the overall weight only 1.5kg

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Big long battery life

• Battery capacity is 3220 mAh+6800 mAh
• Remote sensing length test about 9 h
• The web browsing time is about 12 h

Modeling design

• Aviation aluminum alloy shell, strong and lightweight
• Product the total weight is only 1.5 kg
• Around with soft rubber, skid resistance to knock against

Parameters

Overall

Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna

Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G

Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

External interface: USB3.0*2
