T26 Ultra-Mobile Ground Control Station For Unmanned Vehicle Remote Control System

T26 is a professional GCS for drones, remote-controlled vehicles, built on top of the Panasonic FZ-M1 military-grade tablet. The versatile, lightweight, compact handheld controller is ideal for a wide variety of field environments including industrial, defense applications.

To ensure high-performance and convenient operation, features of T26 include sunlight-readable, multi-touch display, lightweight, 16 channels, window 10 operating system, and strong hardware enabling the scalability.

The integrated large-capacity battery makes it possible to continuously run it for nine hours. It greatly facilitates the user on the field.

UAS, UGVs, USVs, as well as other remote-controlled vehicles, can all be controlled by the T26 Universal Ground Control Station, which is compatible with most open-source flight controllers. The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.

Performance upgrade

• Universal off-the-shelf ground control station

• Built on Panasonic FZ-M1, IP65 grading,

• Aviation grade aluminum shell, the overall weight only 1.5kg

• Touch screens, high definition, high brightness, sunlight-readable

• 16 physical channels

Perfect remote control experience

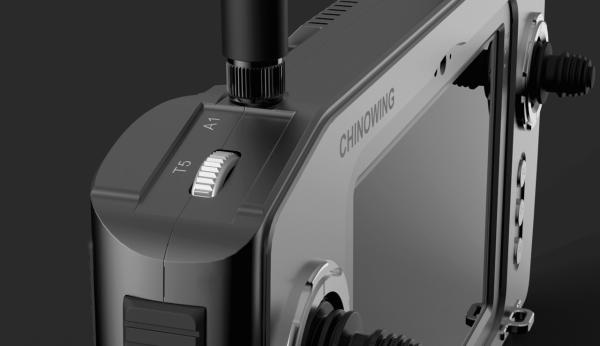

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9hs
• The web browsing 12hs

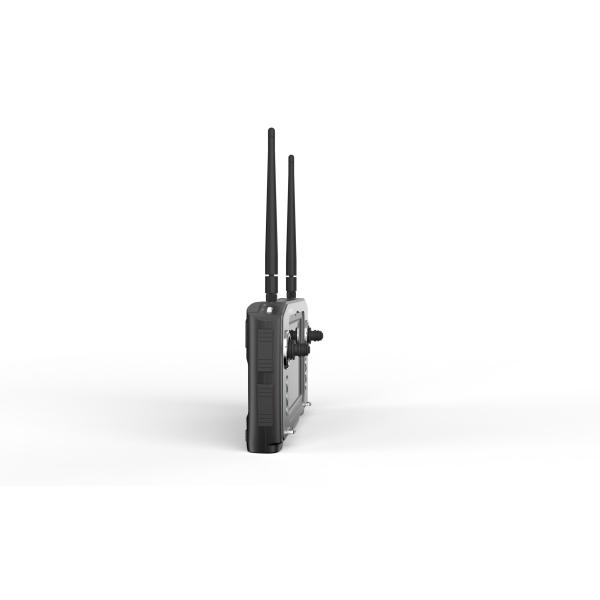

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• Overall weight is only 1.5 kg
• Around with soft rubber, skid resistance, anti-knock

Parameters

Overall

Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna

Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G

Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

External interface: USB3.0*2
