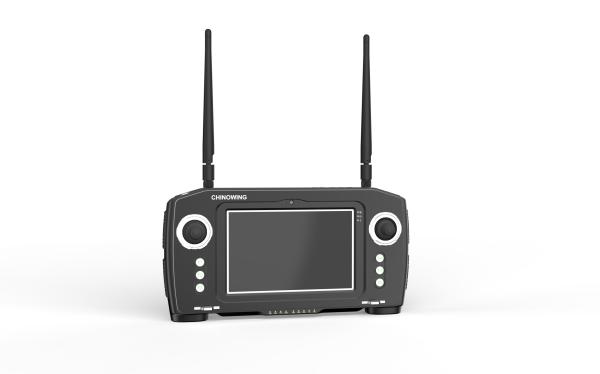

T26 is a military-grade portable command and control platform in high integration of Panasonic FZ-M1 and video&data&RC link. It provides functions such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc. To ensure high-performance and convenient operation, features of T26 include sunlight-readable, multi-touch display, lightweight,16 channels, window 10 operating system, and strong hardware enabling scalability.

The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.

Performance upgrade

• Built on Panasonic FZ-M1, IP65 grading

• Aviation grade aluminum shell, the overall weight only 1.5kg

• Touch screens, high definition, high brightness, sunlight-readable

• Video & telemetry & RC& computer in one, 3 frequency modules in one

• USB HID function

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9hs
• The web browsing 12hs

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• Overall weight is only 1.5 kg
• Around with soft rubber, skid resistance, anti-knock

Parameters

Overall

Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna

Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G

Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

External interface: USB3.0*2
