1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
1060g Android Ground Control Station , FCC CE KC Uav Ground Control System
Specifications
Brand Name :
CHINOWING
Model Number :
T16
Certification :
FCC CE KC
Place of Origin :
China
MOQ :
1pcs
Price :
USD$2641.5925
Payment Terms :
T/T
Supply Ability :
1-10000PCS
Delivery Time :
2-8 working days
Packaging Details :
Plastic suitcase+ carton packing
Channel :
22 physical channels
Frequency :
806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz
RF power :
V21: 0.1-0.5w(adjustable)
Remote control latency :
30ms
Battery capacity :
8.4V/6800mAh built in battery，external battery supported
Duration :
8h@full battery capacity
Weight :
1060g
SBUS :
2*SBUS ports
Video&data link :
Built-in
Joystick :
left and right handed mode/back center mode/hall effect
Other channels :
Auxiliary joystick*2 position switch*4 Knob*2 Key button*8 Pull wheel*2
Mobile devices :
5-10.1 inch mobile device
System :
Windows10/Android
IP rating :
IP 53
External interface :
USB3.0 LAN
Operating temperature :
-10~+60℃
Dimension :
290mm*150mm*60mm
Remote control range :
5-17km
Description

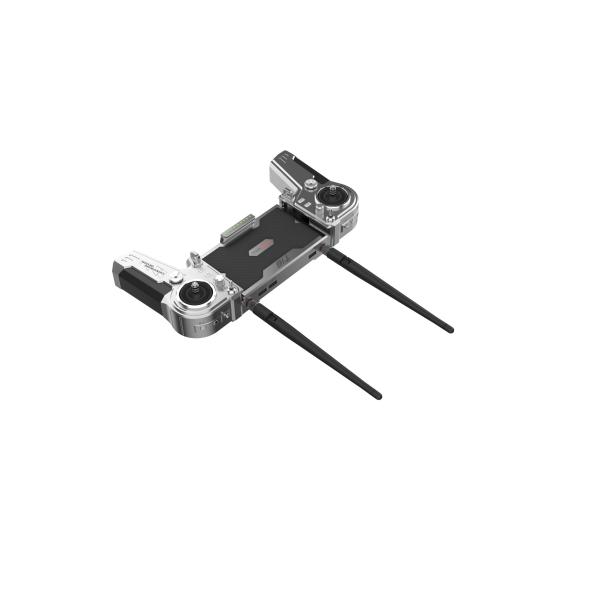

T16 hand held ground control station with 5-10.1inch mobile device

T16 is a portable and compact ground control station (GCS), which is designed to be operated conveniently, safely, and efficiently, especially for individual use. Supporting iOS and Android systems, T16 allows control of the drone and its payload, as well as displaying real-time on-board status. The military-grade data link ensures flight stability and safety.

Product features

A main joystick and a secondary joystick, programmable dual SBUS outputs, independent operation

Featuring 10 liner channels to meet a range of control requirements

There are multiple joystick options, including left- and right-handed versions, back center modes, and hall effect joysticks.

Universal platform,compatible with the most flight controllers

Remote control.temetry data,real-time HD video display,suitable for individual operation

In order to ensure quick ground station operation, eight quick keys are equipped with USB HID input that supports USB HID input from the computer.

Dual SBUS independent output programable, capable of controlling the drone and the payload

The range of the soft-ware communication can be up to 10km with 800MHz, 1.4GHz, or 2.4GHz

1060g Android Ground Control Station , FCC CE KC Uav Ground Control System1060g Android Ground Control Station , FCC CE KC Uav Ground Control System1060g Android Ground Control Station , FCC CE KC Uav Ground Control System1060g Android Ground Control Station , FCC CE KC Uav Ground Control System

Remote controller T16

T16 GCS
Channel 22 physical channels joystick left and right handed mode/ back center mode/hall effect
Frequency 806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz Other channels Auxiliary joystick*2 position switch*4 knob*2 Key button*8 Pull wheel*2
RF power V21:0.1-0.5w(adjustable) Mobile devices 5-10.1 inch Mobile device
Remote control latency 30ms System Windows10/Android
Battery capacity 8.4V/6800mAH built-in battery, external battery supported IP rating IP53
Duration 8H with full capacity External interface USB3.0 LAN
Weight 1060g Operating environment -10~60℃
S-BUS 2*SUBS ports Dimension 290mm*150mm*60mm
Video&data link Built- in Remote control range 5-17km
