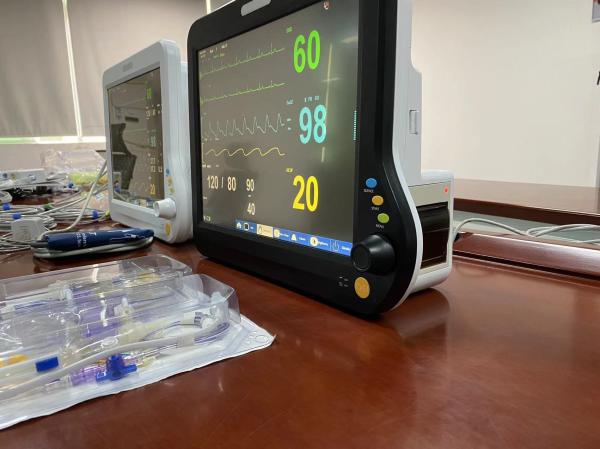

Medical Multipara ICU Cardiac Monitor Multi Language With Touch Screen
Medical Multipara ICU Cardiac Monitor Multi Language With Touch Screen
Medical Multipara ICU Cardiac Monitor Multi Language With Touch Screen
Medical Multipara ICU Cardiac Monitor Multi Language With Touch Screen
Specifications
Brand Name :
Hung-Kee
Model Number :
HighAcuity T15
Certification :
IEC
Place of Origin :
P.R.China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000 units per month
Delivery Time :
5 to 30 days
Packaging Details :
Carton Size: 490.0 x 395.00 x 335.00mm (1 pcs/CTN), 0.065CBM G.W.: 6.80Kgs, N.W.: 5.00Kgs
Standard parameters :
ECG, NIBP, SPO2, 2Temp, PR/HR
Optional 1 :
EtCO2, Masimo SPo2, C.O., 2IBP, Suntech BP
Optional 2 :
AG, Printer, center monitoring system, IoC, touch
Language :
English, Russia, French, Spanish, Portuguese
Application :
adult, pediatric, neonate, OR, ICU
Screen size :
15 inch TFT LCD 1024X768
Origin :
Shenzhen, P.R.China
Warranty :
24 months
Trade Terms :
CIF, Exworks
Product name :
cardiac monitoring machine
Description

ICU cardiac monitor Portable Patient monitor with neonate patient monitor modular patient monitor

15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15



ICU cardiac monitor Quick Details:

This ICU cardiac Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR.

1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. real time display the waveform of ECG, or SPO2, Meanwhile, display the digital data of HR/PR, TEMP, RESP, SP02, NIBP
4. Three monitoring mode: Monitor, Operation, Diagnosis
5. Blood pressure measurement has three modes: Manual, Cycle, and Fast measurement
6. Freezing and Storage
7. Display the latest 400 NIBP data
8. Store 168 hours trend chart
9. Sound & light alarm system
10. AC-DC power


Hung-Kee Patient monitor Brochure 2022.01.pdf

Cardiac Patient Monitor Technical details:

Table EtCO2 Specification

Transducer Type Sidestream CO2 Sensor
Sampling Rate 50 mL/minute ± 10 mL/minute
Principle of Operation Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics
Initialization Time Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute

CO2 Measurement
Range

Selectable at
0 ~ 150 mm Hg
0 ~ 19.7%
0 ~ 20 kPa (at 760 mm Hg)
Barometric Pressure supplied automatically by onboard chip

CO2 Resolution

0.1mmHg, at 0 to 49 mm Hg
0.2 mmHg, at 50 to 150 mm Hg

CO2 Accuracy

±2 mm Hg at 0 ~ 40 mm Hg
±5% of reading at 41 ~ 150 mm Hg
± 8% of reading at above 80 BPM

CO2 StabilityDrift over 4 hours shall not exceed 1 mm Hg max.
CO2 Noise

RMS noise of the sensor shall be less than or equal to 0.25
mm Hg at 5% CO2

Respiratory Rate Range 2 to 150 Breaths Per Minute (BPM)

Respiratory Rate
Accuracy

1% of reading ± 1 breath
Calibration

No routine user calibration required, but module can be
calibrated by user

Sample line

Single patient use sample line and inline drier line which
eliminates water vapor of gas

Nasal Sampling Kits for
Non-intubated Patients

Adult and pediatric nasal CO2 sampling lines
On-Airway Adapter KITS for Intubated PatientsAdult and pediatric sampling lines with T-fitting
Sample Kit Hours of Use

Nasal Cannula and connecting sampling line up to 12 hours, for
single patient use
T-fitting (on-Airway Adapter) can be disinfected repeatedly
Gas dryer line up to 1 year, do not need to be disinfected

Flow ControlVia Delta P measurement across a capillary tube
Scavenging PortYes
Voltage Requirements5.0 VDC ± 5%
InterconnectionStandard Lemo Redel 8-pin plastic

Temperature and
Humidity

Operating: 5º to 55ºC, 10 to 90% RH, non-condensing
Storage: -40º to 60ºC, <90% RH, non-condensing

Data Interface RS232, bi-directional, 19200 baud. Standard N-8-1
Data Output

CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2,
Respiratory Rate, Gas and barometric pressure


( for more detailed technical data please refer to above PDF brochure)

ICU cardiac monitor Description:

The HighAcuity T15 ICU cardiac monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments.

1. Durable
Monitor is made of ABS+PC Fireproof Materials.
2. Ultra-thin design
8.9cm thick, smaller footprint.
3. Low consumption
Adopted by the design of fanless, heat fast.
4. Silicone button
Adopted by pure flat silicone button for easy cleaning.

Medical Multipara ICU Cardiac Monitor Multi Language With Touch Screen Medical Multipara ICU Cardiac Monitor Multi Language With Touch Screen


ICU cardiac monitor Standard Accessories:

5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord

ICU cardiac monitor Optional Accessories:

Aluminum trolley, wall mount stand


FAQ for ICU cardiac monitor:

1.Q: How long is the warranty time?
A: 24 Months

2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.

3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.

4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.

5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.

6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.

7.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.

8.Q: What's the MOQ?
A: 1 unit.

9.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
