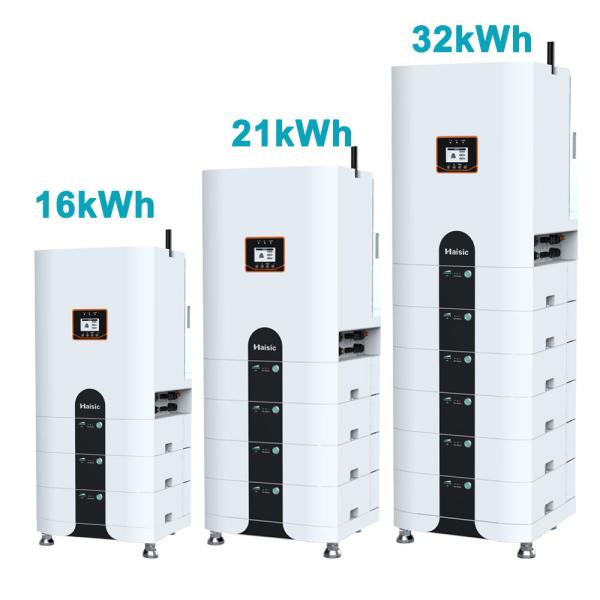

224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
Specifications
Battery Type :
LiFePO4, LiFePO4(LFP)
Model Number :
Battery 21kwh+Inverter HS10kw-T
Brand Name :
Haisic
Place of Origin :
Guangdong, China
Output Power Range :
20-50 kWh
System Type :
Stackable
Type :
All-in-one
Communication Port :
CAN, RS485
Protection Class :
IP65
Grid connection :
Off grid, Hybrid grid
Application :
Home Appliances
Capacity :
105Ah
Cycle life :
6000 Cycles
Voltage :
224-292V
Nominal Capacity :
26.8kWh
Features :
built in in inverter
Operating Temperature Range :
-25℃ ...+60℃(>45℃ derating)
Operating Altitude(m) :
<3000
Warranty :
5 Years
Packaging Details :
Packing in thicker paper box
Supply Ability :
30000 Piece/Pieces per Month
Price :
$11,088.00/pieces 1-10 pieces
Description
Product Advantages

Advantages Of Haisic high voltage stacked battery:


♦Longer Cycle Life :IP65 protection level, the number of cycles reaches 6000+ cycles ，Working temperature range is from -25°C to 60°C, with excellent discharge performance and cycle life.

♦less Environmental Pollution：with non-toxic materials: iron, graphite, and copper,The whole module is non-toxic, non-polluting and environmentally friendly.

♦Safe And Reliable :Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.

♦High discharge efficiency：Battery Efficiency >98.10%

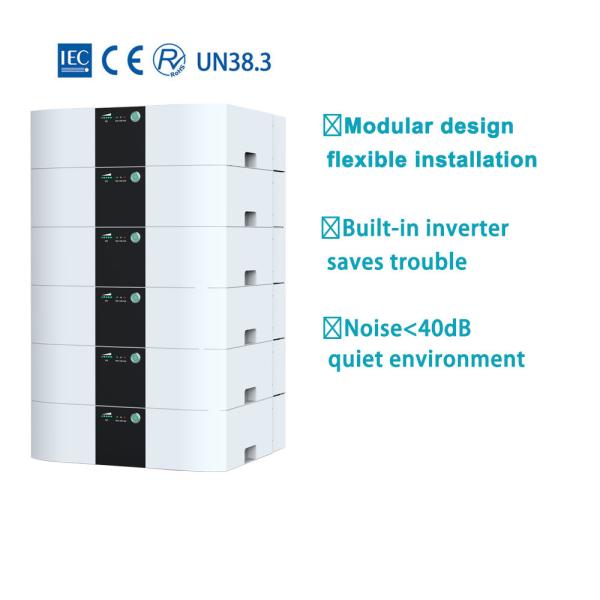

♦Flexible Configuration：Multiple battery modules can be in parallel for expanding capacity and power.Built-in hybrid inverter with 12kw power.
♦low noise：<40dB
Products Description
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
Battery Pack
Battery Model
DT-5000WS5
Battery module number
(connected in serial)
5
Cell Type
Li-ion(LFP)
Battery Voltage Range(V)
224-292
Battery Capacity(Ah)
105Ah
Storage Capacity(KWh)
26.88KWh
Cycle Life
6000
Built-in Hybrid Inverter Model
HS12kw-T
PV Input
Max. PV input power(W)
15600
Max. PV input voltage(V)
1000
MPP Operation Voltage Range(V)
180-950
Number of MPPT/PV strings
2/1
Max. PV input current(A)
12.5/12.5
Short-circuit current of PV input(A)
15/15
Battery Port
Operating Voltage Range(V)
180-700
Max Charge/Discharge Current(A)
50/50
Communication With BMS
CAN
AC Input and Output
Rated Power(W)
12000
Max. Apparent AC Power(VA)
12000
Nominal AC Voltage(Vac)
380,3L/N/PE
AC Power Frequency(Hz)
50/60
Max. AC Output Current(A)
18
Power Factor Range
~1 (Adjustable from 0.8 leading to 0.8 lagging)
OutputTHDi(@Nominal Output)
<3%
Off-Grid AC Output(Back-up AC Output )
Rated Output Power(W)
12000
Max. Apparent AC Output Power(VA)
12000
Nominal AC Output Voltage(Vac)
380,3L/N/PE
AC Power Frequency(Hz)
50/60
Max. AC Output Current(A)
18
Efficiency
MPPT.Efficiency
99.90%
Max.Efficiency
>97.80%
Battery.Efficiency
>98.10%
Genaral Data
Operating Temperature Range
-25℃ …+60℃(>45℃ derating)
Operating Altitude(m)
<3000
Noise(dB)
<40
Topology
Transformerless
Cooling Method
natural
Ingress Protection Rating
IP65
Relative Humidity
5-85%, no condensation
Display
LCD
Communication With Portal
RS485 (WiFi/GPRS Optinal)
Communication With Meter
RS485
Company Profile
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
Certifications
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
Factory Show
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
Exhibition
224-292V High Voltage Battery with 12kw Hybrid Inverter for All-in-one Home Energy Storage
FAQ


Q1:Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2: What's your MOQ
A. MOQ：1PC

Q3:What payment methods are supported?
A:Paypal, Bank Wire, Visa, Mastercard, Amercian Express, Discover, If you prefer other payment terms, please contact us freely.

Q4: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's
confirm when you send inquiry.Shipped from Germany and US warehouses, arrive in 2-5 days

Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q6:How can I do if I need more help for the order?
A:You can chat our sales online or send inquiry email,we will respond you ASAP.

Q7:How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping informtion to our sales they will creat online order for you.
