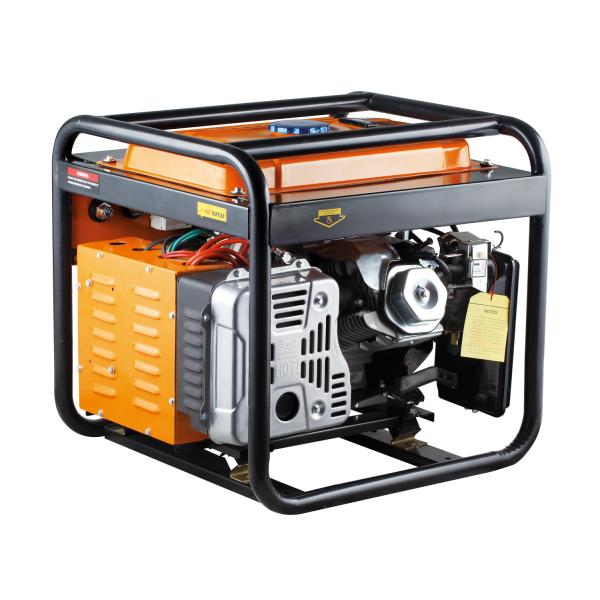

Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode
Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode
Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode
Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode
Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode
Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode
Specifications
Brand Name :
GENFOR
Model Number :
GFA08W-250AG
Certification :
CE
Place of Origin :
China
MOQ :
Sample accept
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000sets per month
Delivery Time :
20-25days
Packaging Details :
Carton/box
Speed :
60Hz 3600rpm
Welder current :
130/250A
Welder volt :
24-32V
Fuel :
Gasoline
Electronic diameter :
2.5-5.0mm
Rated Power :
4.0KW
Engine Type :
192F
Brand :
OEM accept
Description

250A 5.0mm Electrode Permanent Magnet Welder PMG Welding Generator

Model: GFA08W-250A

Welder Current: 130/250A

Electrode Diamter: 2.5-5.0mm

Power Outpu: 4.0KW

1. Two welder current arrange 130A and 250A for Choice.

2. With Standard Permnent Magnet Stator.

3. Strong Design and Stable Welder Current output.

4. Welding and Generatin Double Use Mahcine

Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode

Permament Magnet Stator

Gasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm ElectrodeGasoline PMG Welding Generator , Welder Generator Machine 250A 5.0mm Electrode

Package

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery

Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.

TECHNOLOGY DATA技术参数

Model型号

GFA08W-250A(E)

GFA08W-250AG(E)

Welder current(A)电焊电流

250

250

Welder volt(V)电焊电压

24-32

24-32

Range of welder current(A)电焊电流范围

130-250

130-250

Electrode diameter(mm)焊条直径

2.5-5.0

2.5-5.0

Duty cycle电焊持续率

60%

60%

Phase相数

Single phase单相

Single phase单相

Frequency(Hz)频率

3600/50 or 60Hz

3600/50 or 60Hz

AC output(KW)输出功率

1

4

AC voltage(V) 电压

220-240

220-240

Power factor功率因数

1

1

Engine model发动机型号

GF192F

GF192F

Enine power(HP)发动机功率

16

16

Displacement(cc)排量

440

440

Compression ratio压缩比

8.3:1

8.3:1

Starting system启动方式

Recoil/Electric 手动/电动

Lubrication Systerm润滑系统

Forced lubrication压力润滑

Fuel tank capacity(L)油箱容量

15

15

Oil capacity(L)机油容量

1.1

1.1

Noise levevl(Db/7)噪音

70

70

Packing dimensions(mm)包装尺寸

630x570x600

630x570x600

Gross Weight(KG)毛重

70

72
