2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable
Specifications
Brand Name :
GENFOR
Model Number :
GFA174-2.0
Certification :
CE
Place of Origin :
China
MOQ :
Sample accept
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
20-25days
Packaging Details :
Carton/box
Marterials :
Aluminum Casting
Color :
As Request
Brand :
GENFOR/OEM accept
Voltage :
110~240V As required
Copper wire :
100%
Shaft ouput :
As Request
Shaft Size :
As Request
Speed :
50Hz 3000/60Hz 3600rpm
Description

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

1. Cast aluminum shell

2. Easy to install with many kinds of machine,such as gasoline/diesel engine

3. 100% copper wire,and cold-rolled silicon steel

Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,

DC Output:12V/8.3A(Optional)

Excitation Type:Brushless

2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable

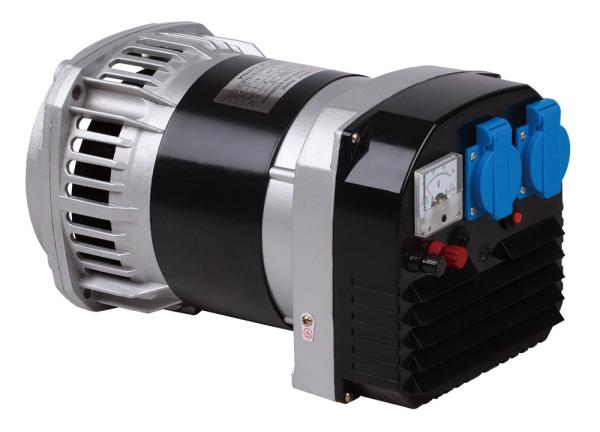

Single-Phase with Eur socket.(socket as request)

2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable

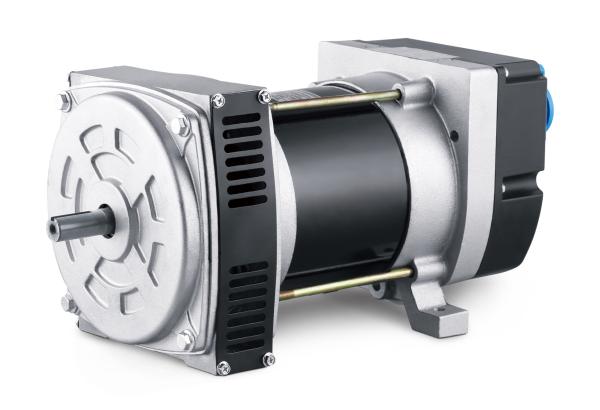

Double Bearing type with Socket

2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable

Taper shaft type

2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable

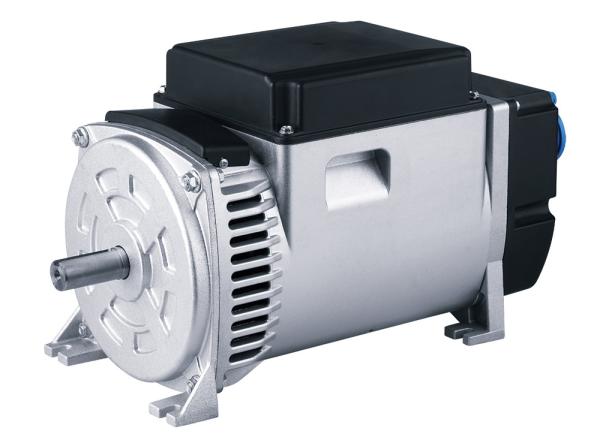

Single/Three-Phase with Lead output

2KW 3KW High Output Alternator 100% Copper Wire Structure Highly durable

TECHNICAL DATE

Brushless revolving filed,selft-exciting,2-poles,single phase
Condenser compensating system

Type

Rated Power

Max Power

Efficiency
ɳ(%)
CosФ=1

MASS B3 (kg)

Overall&Mounting Dimensions (mm)

A

B

E

K

D

GFA174-2.0 B3

50Hz-3000r.p.m

2.0

2.3

71±2

20.0

369.0

139.0

50.0

27.0

24.0

60Hz-3600r.p.m

2.5

2.8

GFA174-2.5 B3

50Hz-3000r.p.m

2.5

2.8

73±2

21.5

384.0

154.0

50.0

27.0

24.0

60Hz-3600r.p.m

3.0

3.5

GFA174-3.0 B3

50Hz-3000r.p.m

3.0

3.3

75±2

22.5

394.0

164.0

50.0

27.0

24.0

60Hz-3600r.p.m

3.5

4.0

GFA174-3.5 B3

50Hz-3000r.p.m

3.5

4.0

77±2

24.0

414.0

184.0

50.0

27.0

24.0

60Hz-3600r.p.m

4.0

4.5

GFA174-4.0 B3

50Hz-3000r.p.m

4.0

4.5

81±2

28.0

454.0

214.0

60.0

31.0

28.0

60Hz-3600r.p.m

5.0

5.5

GFA174-5.0 B3

50Hz-3000r.p.m

5.0

5.5

83±2

29.0

464.0

224.0

60.0

31.0

28.0

60Hz-3600r.p.m

5.5

6.5

Note:The data for your information only ,and changes based on practicality


Package.

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.
