AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed
Specifications
Brand Name :
GENFOR
Model Number :
GFA174-4.0
Certification :
CE
Place of Origin :
China
MOQ :
Sample accept
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
20-25days
Packaging Details :
Carton/box
Voltage :
110~240V As required
Shaft ouput :
As Request
Copper wire :
100%
Speed :
50Hz 3000/60Hz 3600rpm
Shaft Size :
As Request
Marterials :
Aluminum Casting
Color :
As Request
Brand :
GENFOR/OEM accept
Description

AC DC8.3A12V Alternator High Output Alternator Selft-Exciting Single-Phase Dynamo 4KW

Model tyep: GFA174-4.0

Standy Power: 4.5KW

Rated Power: 4.0KW

Shaft Type: Taper Shaft 1:5/1:5.333

1. Cast aluminum shell

2. Easy to install with many kinds of machine,such as gasoline/diesel engine

3. 100% copper wire,and cold-rolled silicon steel

Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,

DC Output:12V/8.3A(Optional)

Excitation Type:Brushless

AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed

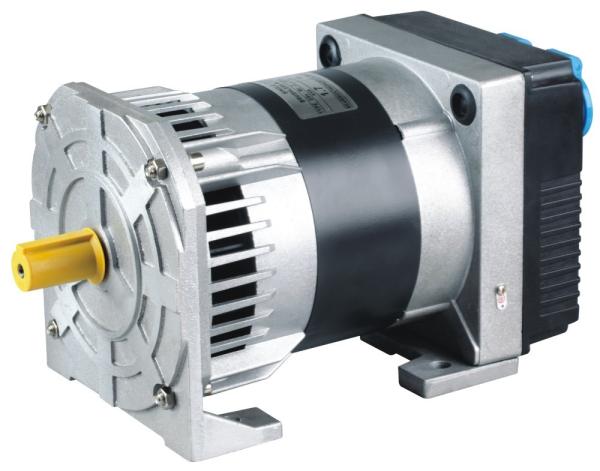

Single-Phase with Eur socket.(socket as request)

AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed

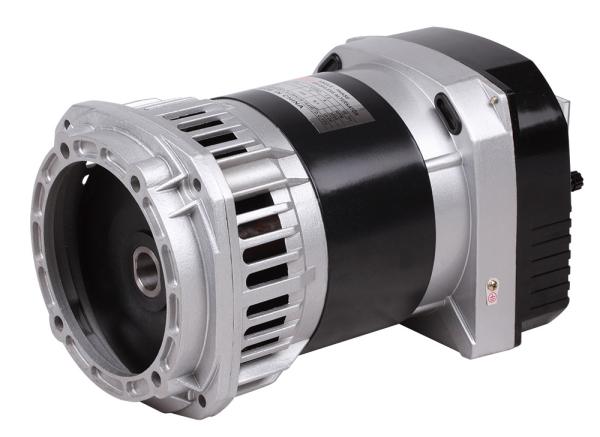

Double Bearing type with Socket

AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed

Taper shaft type

AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed

Single/Three-Phase with Lead output

AC DC 8.3A 12V High Current Alternator 50Hz 3000 / 60Hz 3600rpm Speed

TECHNICAL DATE

Type

Rated Power

Max Power

Overall&Mounting Dimensions(mm)

A

B

C

E

ΦF

Taper

GFA174-2.0

50Hz-3000r.p.m

2.0

2.3

345

269

80

23/52.3

17/19.17

1:5/

1:5.333

60Hz-3600r.p.m

2.5

2.8

GFA174-2.5

50Hz-3000r.p.m

2.5

2.8

355

279

90

60Hz-3600r.p.m

3.0

3.5

GFA174-3.0

50Hz-3000r.p.m

3.0

3.3

375

299

110


47/63.2


26/25.4


1:5/ 1:5.3333

60Hz-3600r.p.m

3.5

4.0

GFA174-3.5

50Hz-3000r.p.m

3.5

4.0

395

319

130

60Hz-3600r.p.m

4.0

4.5

GFA174-4.0

50Hz-3000r.p.m

4.0

4.5

405

329

140

60Hz-3600r.p.m

5.0

5.5

GFA174-5.0

50Hz-3000r.p.m

5.0

5.5

415

339

150

60Hz-3600r.p.m

5.8

6.5

Note:The data for your information only ,and changes based on practicality

Packing.

We have different original packages for selling in different counties. Package.

we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.
