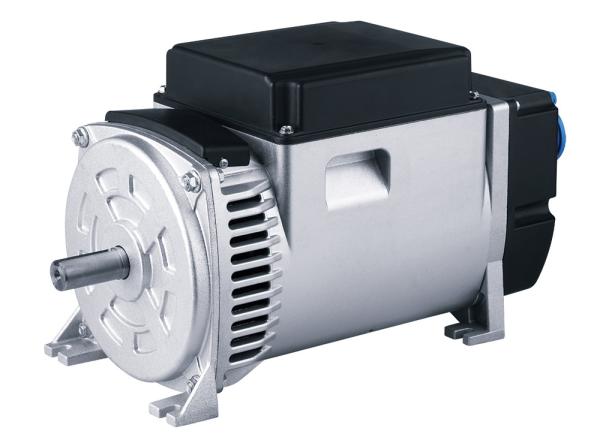

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator
Specifications
Brand Name :
GENFOR
Model Number :
GFA09-3.5 B3
Certification :
CE
Place of Origin :
China
MOQ :
Sample accept
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
20-25days
Packaging Details :
Carton/box
Max.Power :
3.8 KVA
Rated Power :
3.5 KVA
Brand :
GENFOR/OEM accept
Voltage :
110~240V As required
Copper wire :
100%
Shaft ouput :
As Request
Shaft Size :
19.05mm
Speed :
50Hz 3000/60Hz 3600rpm
Description

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

1.Cast aluminum shell

2.Easy to install with many kinds of machine,such as gasoline/diesel engine

3.100% copper wire,and cold-rolled silicon steel

Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240

DC Output:12V/8.3A(Optional)

Excitation Type:Brush&Brushless

Remarks:Dimensions marked above are according to Honda engine GX160 GX200

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

Single-Phase with Eur socket.(socket as request)

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

Double Bearing type with Socket

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

Taper shaft type Three phase with control panel

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

Single/Three-Phase with Lead output

1KW To 3.5 KW Double Bearing Alternator High Output Alternator Single-phase Alternator

TECHNICAL DATE
Type Rated Power (KVA) Max Power (KVA) Overall&Mounting Dimensions(mm)
A B C D K ΦF
GFA09-1.0 B3 50Hz-3000r.p.m 1.0 1.1 371 143 60
20/22
16.5/18
6/8
60Hz-3600r.p.m 1.2 1.3
GFA09-1.5 B3 50Hz-3000r.p.m 1.5 1.7 381 153 70
60Hz-3600r.p.m 1.8 2.0
GFA09-2.0 B3 50Hz-3000r.p.m 2.0 2.2 396 168 85
60Hz-3600r.p.m 2.2 2.5
GFA09-2.5 B3 50Hz-3000r.p.m 2.5 2.8 421 193 110
60Hz-3600r.p.m 2.8 3.0
GFA09-3.0 B3 50Hz-3000r.p.m 3.0 3.2 431 203 120
60Hz-3600r.p.m 3.2 3.3
GFA09-3.5 B3 50Hz-3000r.p.m 3.5 3.8 441 213 130
60Hz-3600r.p.m 3.8 4.0


Package.

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.
