Portable 1530 Gantry Plasma Cutting Machine For Metal Stainless Steel
Portable 1530 Gantry Plasma Cutting Machine For Metal Stainless Steel
Specifications
Brand Name :
SNR
Model Number :
SNR-QL1
Certification :
CE
Place of Origin :
Beijing, China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15 work days
Packaging Details :
wooden case
Machine Name :
CNC cutting machine
Working area :
1500*3000mm, can be customized
Cutting mode :
Plasma Cutting+ Flame Cutting
Control system :
Fangling F2100B
Motor :
Stepper motor
THC :
Fangling automatic F1621
Plasma cutting thickness :
2-20mm, depends on plasma source
Flame Cutting thickness :
6-120mm
Cutting speed :
0-6000mm/min
Nesting software :
FastCAM Standard Version or HiNest Or StarCAM
Description

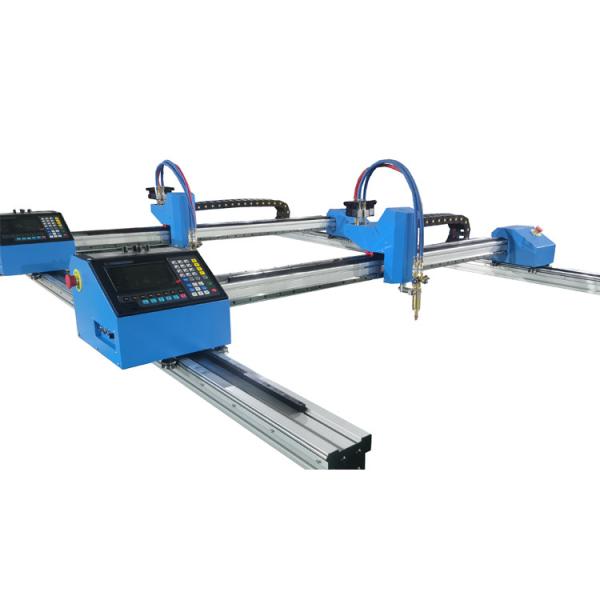

Portable 1530 Gantry Cnc Plasma Metal Stainless Steel Cutting Machine

Description

This aluminum profile gantry CNC Cutting Machine can cut any complex plane figures , equip with stepper motor and double side drive, It can match both flame torch and plasma cutter.

Its design is compact and its structure is rational, which makes it lightweight, and easy to move. It is applicable both indoors and outdoors.

It is simple and efficient in drawing, nesting and cutting because of the installation of Fast CAM cutting software.

Application

It can be used to cut all kinds of metal materials as Carbon steel, stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet and also insulated panel and composite materials.

Technical Parameters

Product Name CNC plasma cutting machine
Effective work size 1500*3000mm, can be customized as per your requirements.
CNC controller Fangling F2100B, 7.0 inch
THC Fangling F1621 auto torch height control for plasma
Drive motor Step motor
Drive mode Dual drive
Cutting thickness 6-120mm(flame), 2-20mm(plasma, depends on plasma source)
Cutting speed 0-6000mm/min(plasma),0-700mm/min(flame)
Nest software FASTCAM/STARCAM/HINEST
Rail for X axis Linear rail
Cutting mode plasma+gas(oxyfuel)
Plasma source HUAYUAN Or MISNCO 100A, 120A, 160A

Product Configuration

Portable 1530 Gantry Plasma Cutting Machine For Metal Stainless Steel

FAQ

Q1: Are you a trading company or manufacturer?

A: we are a professional manufacturer of CNC cutting machine for 14 years.

Q2: Do you accept OEM for customer’s brand?

A: yes, we can do OEM. But we need MOQ for mass production.

Q3: What’s the delivery time?

A: The delivery time depends on machine model and quantity, you can directly contact us for more information.

Q4: What’s the payment terms for a new customer?

A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.

Q5: What kind of package do you use?

A: Plywood case, fumigation-free.

Q6: I know nothing about this machine, what kind of machine i should choose?

A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
