Specifications
Brand Name :
SNR
Model Number :
SNR-FL
Certification :
CE
Place of Origin :
SHANDONG,CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
15 work days
Packaging Details :
nude package(plastic film wrap)
Product name :
fiber laser tube cutting machine
Laser source :
MAX
Cutting size :
6000*1500mm
Laser head :
OSPRI/WSX
Control system :
SHANGHAI FRIENDNESS
IPC :
ADVANTECH
Drive motor :
servo motor
Cooling system :
HANLI
Tube length :
6000mm
Tube diameter :
20-220mm
Description

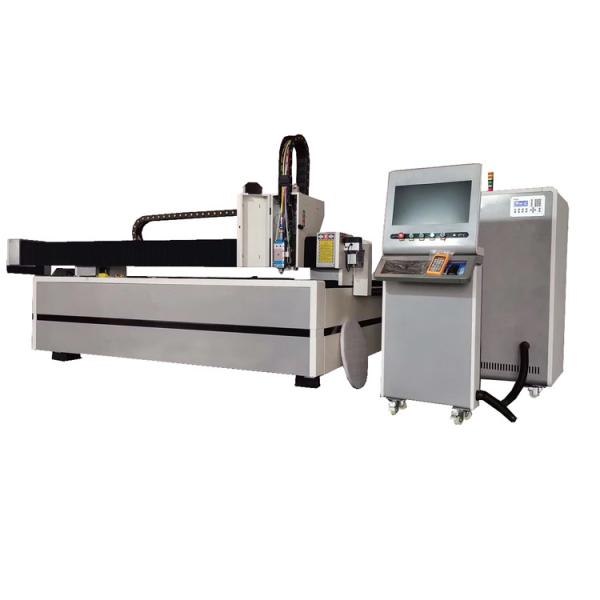

1500W, 2000W, 3000W 6015 Fiber Laser Metal Sheet and Tube Cutting Machine

1. High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.

2. Gantry double-drive structure,with high precision rack & gear transmission system, which improves the production efficiency.
3. High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
4. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
5. It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
6. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys



Technical Parameters

Processing size:
1 Cutting size(L×W) 6000mm×1500mm
2 X-axis travel 2420mm
3 Y-axis travel 6220mm
4 Z-axis travel 120mm
5 Pipe length 6000mm
Precision:
5 X/Y axis position precision ±0.05mm/m
6 X/Y axis Repeatability +0.03mm
7 Maximum acceleration 0.8G
Weight & dimensions:
8 Machine tools weight ~5000kg
9 Worktable max load 2000kg
10 Dimensions(L/W/H) 7500*4000*2200
Cutting date
11 Cutting thickness ≤8mm(SS),≤20mm(MS),≤6mm(Aluminum alloy)
12 Transmission method Gear&rack
Plasma source:
13 Phase 3+1
14 rated voltage, frequency 380V50Hz
15 power consumption 25KW
16 protection level IP54




























Company information

Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.

Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.

Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.

So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.
1kW Fiber Laser Cutting Machine Stainless Steel Pipe Laser Cutting Machine
Our advantge
1kW Fiber Laser Cutting Machine Stainless Steel Pipe Laser Cutting Machine
Our certificate
1kW Fiber Laser Cutting Machine Stainless Steel Pipe Laser Cutting Machine
Shipping
1kW Fiber Laser Cutting Machine Stainless Steel Pipe Laser Cutting Machine
FAQ

Q1: Are you a trading company or manufacturer?

A: we are a professional manufacturer of CNC cutting machine for 14 years.

Q2: Do you accept OEM for customer’s brand?

A: yes, we can do OEM. But we need MOQ for mass production.

Q3: What’s the delivery time?

A: The delivery time depends on machine model and quantity, you can directly contact us for more information.

Q4: What’s the payment terms for a new customer?

A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.

Q5: What kind of package do you use?

A: Plywood case, fumigation-free.

Q6: I know nothing about this machine, what kind of machine i should choose?

A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
