Specifications
Place of Origin :
Beijing, China
Brand Name :
SNR
Certification :
CE
Packaging Details :
exported wooden case
Supply Ability :
50 Sets per Month
Price :
Negotiable
Model Number :
SNR-KB
MOQ :
1set
Payment Terms :
T/T
Delivery Time :
5-8 work days
Name :
CNC Portable Plasma Cutters
Color :
white or red
application :
for metal cutting
Voltage :
220V
Rated Power :
200W
Cutting mode :
Plasma Cutting+ Flame Cutting
Cutting size :
1500x3000mm
Control system :
Starfire SF-2100S or Fangling F2100B
THC :
automatic for plasma F1621
Software :
FastCAM standard / StarCAM/HiNest
Drive motor :
Stepper motor
Cutting speed :
0-6000mm (plasma)
Description

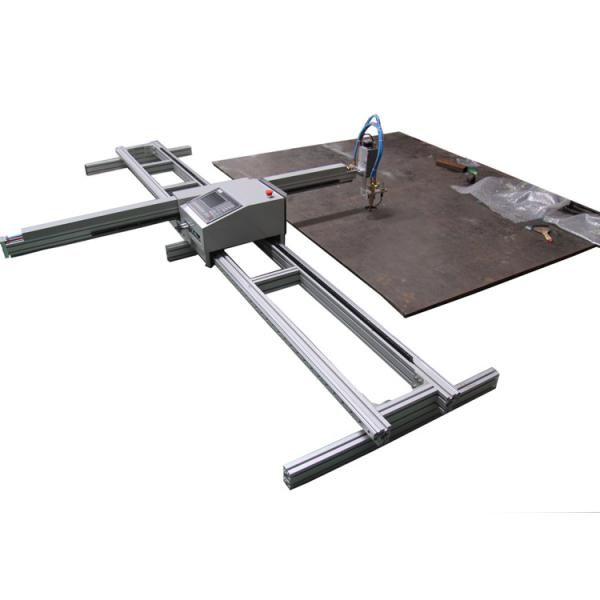

metal steel 220V 50Hz 1530 portable cnc plasma and flame cutting machine

1. Classic crossbow portable cnc plamsa and flame cutting machine with show room in Russia.
2. Human interface design makes the machine easy to learn and operate, and have complete functions.
3. Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
4. With two cutting modes: Flame Cutting & Plasma Cutting.
5. Chinese, English, French, and Portuguese are ready to use.

Product Parameters

Name portable CNC plasma metal sheet cutting machine
Input voltage single phase 220V, 50/60Hz
Power 200W
Effective cutting width 1500mm, 1800mm, 2000mm, can be customized
Efective cutting length 3000mm, 6000mm, can be customized
CNC controller Starfire SF-2100S or Fangling F2100B 7.0 inch LCD
THC Fangling F1621 auto torch height control for plasma
Plasma Cutting thickness 2-25mm,depends on plasma source
Flame cutting thickness 6-120mm
Plasma cutting speed 0-6000mm/min
Flame cutting speed 0-700mm/min
Drive motor Step motor
Drive mode Single side drive
Rail for Y axis HIWIN linear rail
Rail for X axis High speed two-axis rail
Lifter quantity 1 pc,support both plasma and flame
Lifting range up to 100mm
Nest software FastCAM/StarCAM/HiNest
Plasma source(optional) CHINA HUAYUAN or MISNCO 100A,120A,200A,300A,400A

Product detail show

50Hz 1530 Portable CNC Plasma Cutting Machine 200W Mobile Plasma Cutter

Company information

Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.

Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.

Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.

So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.

50Hz 1530 Portable CNC Plasma Cutting Machine 200W Mobile Plasma Cutter

Our Advantage

50Hz 1530 Portable CNC Plasma Cutting Machine 200W Mobile Plasma Cutter

Our exhibition

50Hz 1530 Portable CNC Plasma Cutting Machine 200W Mobile Plasma Cutter

Our Certificate

50Hz 1530 Portable CNC Plasma Cutting Machine 200W Mobile Plasma Cutter

Packing&Shipping

50Hz 1530 Portable CNC Plasma Cutting Machine 200W Mobile Plasma Cutter

FAQ

Q1: Are you a trading company or manufacturer?

A: we are a professional manufacturer of CNC cutting machine for 14 years.

Q2: Do you accept OEM for customer’s brand?

A: yes, we can do OEM. But we need MOQ for mass production.

Q3: What’s the delivery time?

A: The delivery time depends on machine model and quantity, you can directly contact us for more information.

Q4: What’s the payment terms for a new customer?

A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.

Q5: What kind of package do you use?

A: Plywood case, fumigation-free.

Q6: I know nothing about this machine, what kind of machine i should choose?

A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
