3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
Specifications
Brand Name :
HYPER
Model Number :
1395
Certification :
DIN VDE 0623 EN/IEC 60309-2
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs / month
Delivery Time :
15 days
Packaging Details :
packed by standard paper carton
Name :
Straight Industrial Socket
Current & Voltage :
32A 230V
Poles :
3 pins
Earth Position :
6 h
Protection Degree :
IP44 Water protected
Product weight :
236G/pc
Description

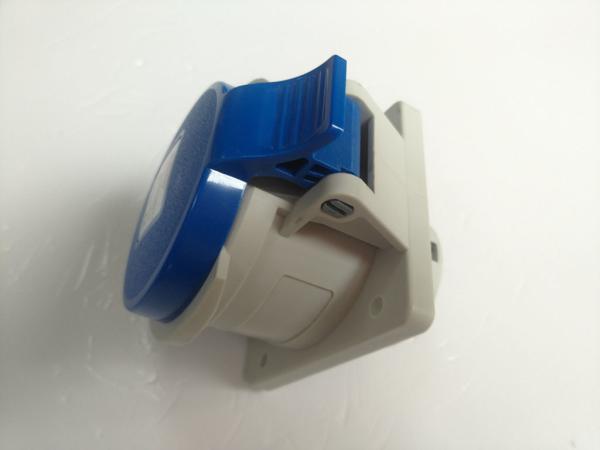

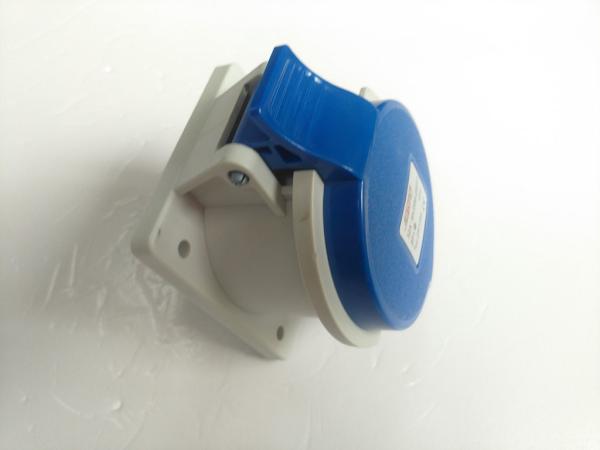

3P32A IP44 Weather Protection Panel Mounted Straight Receptacle 3rd Generation Industrial Socket part no. 1395

Description:

  • Plugs are available in P N E (unbalanced single phase with neutral), 2P E (balanced single phase), 3P E (3 phase without neutral), and 3P N E (three phase with neutral). Current ratings available are 16 A, 32 A, 63 A, 125 A and 200 A.
  • Voltage and other characteristics are represented by a colour code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage).
  • Since the different current ratings have different overall sizes, it is also not possible to mate different pin configurations or current ratings.
  • Part no. 1395

Technique Parameter:

Current Poles 110V
50a.60Hz		 230V
50a.60Hz		 400V
50a.60Hz		 500V
50a.60Hz		 >50-500V
100-300Hz		 >50-500V
a.300-500Hz		 Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

 PCS/BOX G/PC
32A 3 1394 1395 1396 10 224
4 1397 1398 1399 1400 1041 1042 10 245
5 3449 3454 3451 3425 3455 3447 10 245
Current Poles a b c d e f g. g.1 h h1 k i
32A 3 75 75 64 60 60 5.5 8 2 89 12 32 62
4 75 75 64 60 60 5.5 8 2 89 12 32 62
5 75 75 64 60 60 5.5 8 2 95 12 32 65
Conductor cross-sectional area(mm²)Min To Max 4-6

Picture:

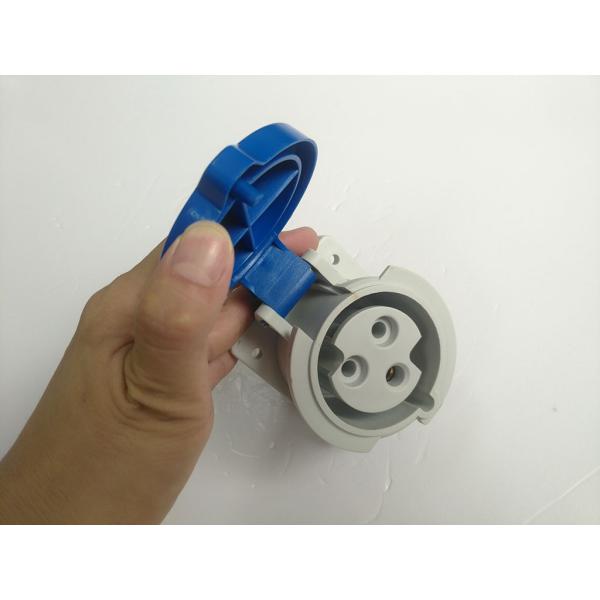

3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation
