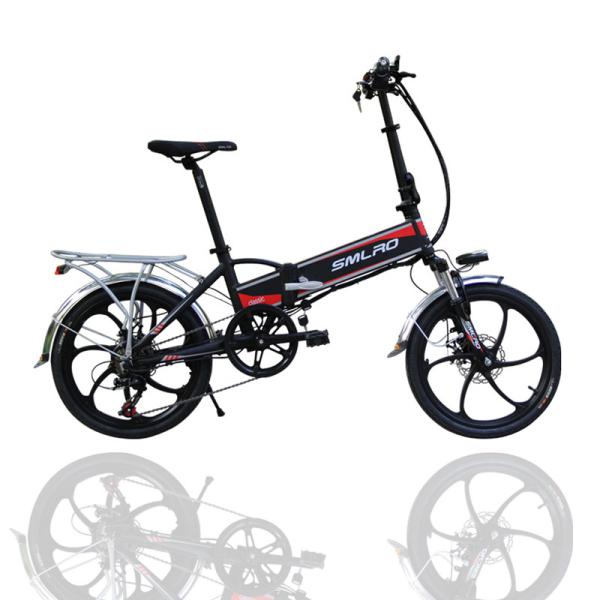

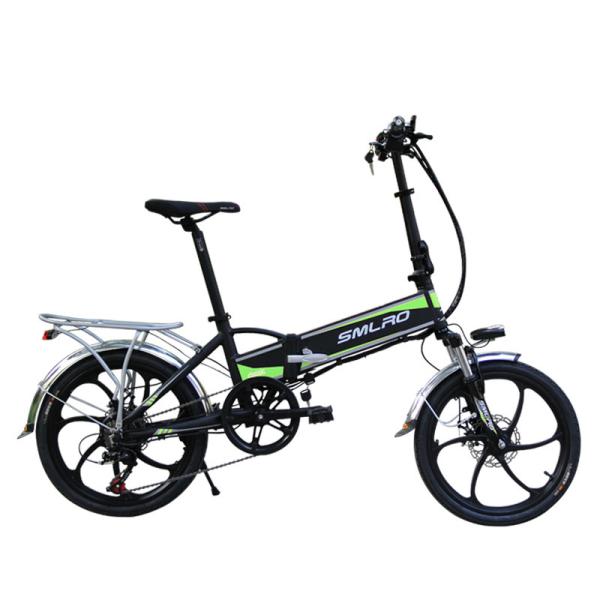

Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult
Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult
Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult
Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult
Specifications
Certification :
CE
Place of Origin :
Guangdong, China
Brand Name :
SMLRO
Model Number :
M5
MOQ :
1-9 Pieces
Price :
negotiated
Wattage :
251 - 350w
Max load :
120kg
Max speed :
30km/h
Shifter :
Shimano TX50
Voltage :
48V
Meter :
7-speed smart meter button
Power Supply :
Lithium Battery
Selling Units :
Single item
Single package size  :
98X40X72 cm
Wheel Size :
20"
Single gross weight :
31.0 kg
Motor :
Brushless
Package Type :
20 inch Large Capacity E Bike 48v 350w Folding Electric Bicycle City for Adult One piece carton
Frame Material :
Aluminum Alloy
Foldable :
Yes
Max Speed :
30-50km/h
Range per Power :
10 - 30 km
Product name :
Electric Bike
Battery :
48V 10Ah Lithium Battery
Motor Power :
48V 350W
Frame :
Aluminum Alloy Foldable Frame
Tire :
Chaoyang 20x1.75
Mile Range :
18.6 mi / 24.9 km (varies with individual use)
Packaging Details :
one piece/carton
Payment Terms :
T/T western union
Supply Ability :
100 pieces one month
Description

20 inch Large Capacity E Bike 48v 350w Folding Electric Bicycle City for Adult

Product Description

Bike Model

M5 (Shimano 7-speed)

Riding Mode

Electric Power Assist (5 Shifts)

Wheel Size

20"

Pure Electric (5 shifts)

Bike Color

White&Blue, Black&Green,

Black&Red

Pure Human Riding

Net Weight

24KG

Endurance Mileage

Electric Power Assist,50~60KM

Frame

Aluminum alloy Folding Frame

Pure Electric,30~35KM

Handlebar

Aluminum alloy, Folding Stem,

Height Adjustable

Max speed

30 km/h

Seat Post

Aluminum alloy, Quick Release

Max Load

120 KG

Fork

Alloy Crown Suspension Fork

Battery

Lithium Battery(CE,FC,ROSH) ,48V 10AH

Shifting Lever

SHIMANO TX50-7

Full charging Time

4-6 Hours

Rear Derailleur

SHIMANO TZ50

Charging&protect

Overvoltage,Overcurrent Protection,etc.

Cranksets

Prowheel, Aluminum alloy

ShortCircuit, ReversecConnection Protection

Cassettes

SHIMANO TZ21-7,14-28T

Motor

XiongDa ,Rear Drive,48V 350W

Chain

YBN-7S

DC Brushless, Toothed, Low resistance&noise

BB

KENLI, Square hole, Bearing BB68

Max Torque

60 N.M

Brake

Z.STAR Mechanical Disc Brake

Waterproof grade

IP54

Brake Lever

interruption of power supply

brake lever

Controller

5 Shifts intelligent control system

Front Hub

Aluminum alloy Hub

Sine wave integrated IC control chip

Wheelset

Aluminum alloy integrated wheel

Monitor

LCD digital display control instrument

Tire

Chaoyang 20x1.75

Display Function

MPH,Miles,Electricity,Shift,Failure,etc

Grips

Ergonomics, Comfortable

Setting Function

Mileage cleared, Wheel size,etc

Saddle

Light and Comfortable for MTB

Waterproof Grade

IPS6

Pedals

Plastic Folding Pedal

Power assist Sensor

12 Magnetics-Pulse Power assisted Sensor

Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult

Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult

Large Capacity Electric Pedal Bike , 48v 350w Fold Up Electric Bike For Adult

1-5 booster gear the higher the gear position,the stronger the click power.according to the power assist position you set,the ideal power is output indifferent road conditions, and the power is used to make the ride farther and faster,and achieve a comfortable and labor-saving riding experience
