Specifications
Place of Origin :
Beijing
Brand Name :
SADT
Certification :
ＣＥ　ＩＳＯ９００１
MOQ :
1pc
Packaging Details :
Standard package
Delivery Time :
Within one week after receiving payment
Payment Terms :
T/T in advance
Supply Ability :
50pcs/week
Model Number :
ROUGHSCAN
Display :
3-digit LCD
Resolution :
0.01μm/1μ”
Sensor Type :
Piezoelectric
Maximum stylus force :
15.0mN/1500mgf
Description

ANSI 2RC Filter RoughScan Portable Surface Roughness Tester Piezo-Electric Probe

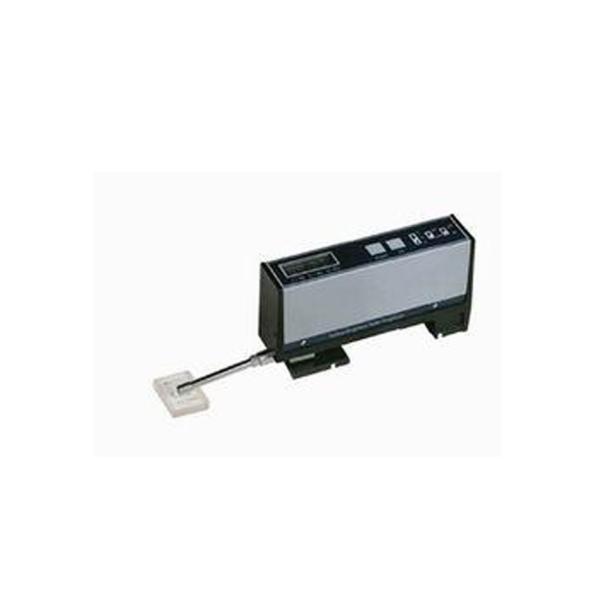

RoughScan is a portable, batterypowered, micro processed instrument for checking surface roughness with digital readout on LCD. RoughScan can be widely used in laboratory, inspection area in the shop, or wherever on-suit surface roughness testing is required.

Specifications:

Model SADT RoughScan
Measuring Range Ra: 0.03μm~6.3μm/1μ”~250μ”
Rz/Ry/Rmax: 0.2μm~25μm/8μ”~999μ”
Resolution 0.01μm/1μ”
Cut-off 0.8mm/0.30”, ANSI 2RC Filter
Display 3-digit LCD
Readout Error ±10%
Stability ≤6%
Sensor Type Piezoelectric
Maximum stylus force 15.0mN/1500mgf
Working Environment 10°C~45°C
Storage Temperature 0°C~60°C

Traverse lengths and Evaluation lengths:

Traverse length Evaluation length Numbers of cutoff
0.5mm 0.25mm 1
1.2mm 0.8mm 1
5.5mm 5.0mm 1
1.25mm 0.75mm 3
3.0mm 2.4mm 3
5.5mm 5.0mm 3
1.75mm 1.25mm 5
4.5mm 4.0mm 5
5.5mm 5.0mm 5

A ROUGHSCAN standard kit is furnished in a fitted case, and includes:
 A ROUGHSCAN unit with a general purpose probe (SFP-2001)
 A precision reference specimen
 A 9-volt alkaline battery
 A riser plate for calibrating the gage with the reference specimen
 A screw driver


Company Information

Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring andtesting instrument, specialized in NDT and quality control fields.

We have our own HARTIP series portable hardness testerssince 1995.

Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, digital concrete hammer, gloss meter, colorimeter, roughness tester, handheld metallurgical microscope, ultrasonic flaw detector and so on.

Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc.

We are professional producer with ISO 9001 quality system. Most of the products are applied with CE certificate.
