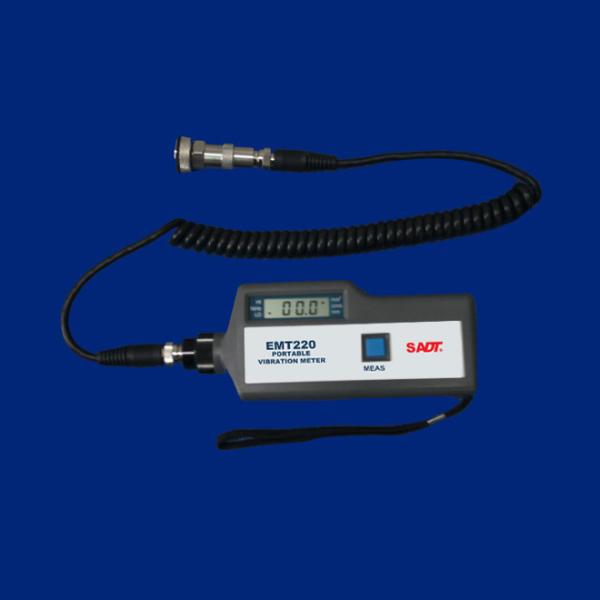

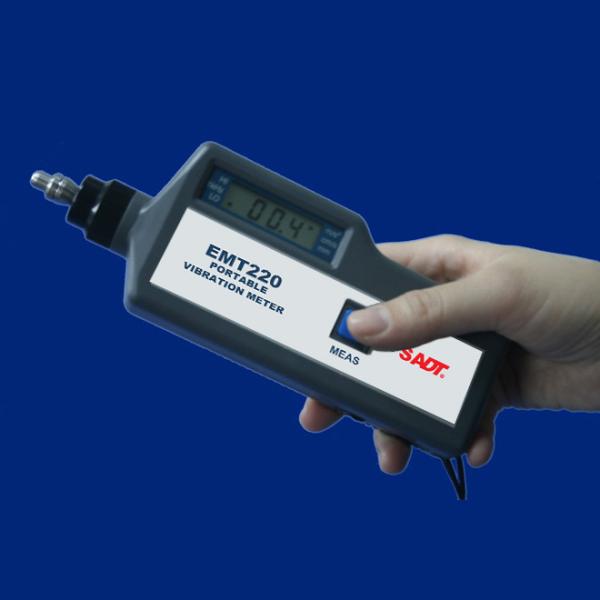

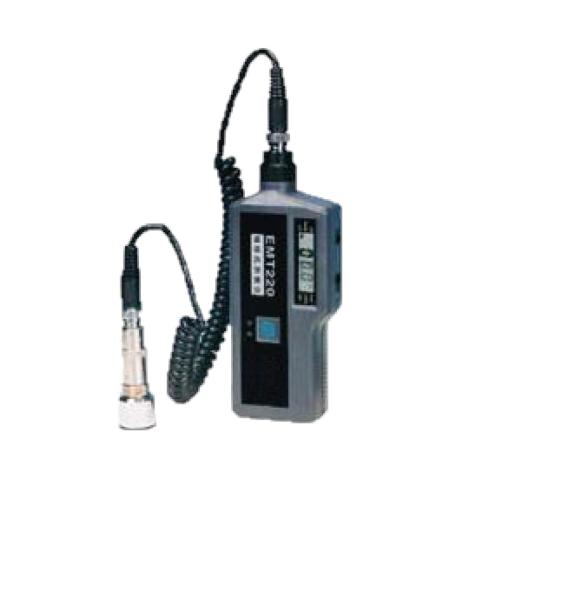

0.001～1.999 mm Displacement digits liquid crystal display 2V AC portable viration meter

Vibration transducer:
Annular shear type acceleration transducer (only for integral type)Separate, built-in electric charge amplifier, shear type acceleration transducer (only for separate type)

Temperature transducer:
Type K thermoelectro couple transducer (only for EMT220 with temperature measuring function)

Detector:
Root Mean Square

Vibration measurement scale:
Displacement: 0.001～1.999 mm (peak to peak)
Velocity: 0.01～19.99 cm/s (r.m.s. value)
Acceleration: 0.1～199.9 m/s2 (peak value)
Vibration acceleration: ≤ 199.9 m/s2 (peak value)

Temperature measurement scale:　
-20 ～400 ℃(only for EMT220 with temperature-measuring function)

Accuracy:
Vibration measurement: ±5％Measurement value; ±2 Digits
Temperature measurement: ±1% Measurement value; ±1 Digit

Vibration Frequency Range:
10 ～1 kHz (Normal type)
5 ～1 kHz (Low frequency type)
1 ～15 kHz (only at “HI” position for acceleration)

Display: Digits liquid crystal display
Sample period:1 second

Vibration measurement value readout:
Displacement: Peak to peak value (r.m.s.×2√2)
Velocity: Root mean square (r.m.s.)
Acceleration: Peak value (r.m.s.x√2)

Readout-keeping function:
Readout of vibration / temperature value can be remembered after
releasing the Measure Key (Vibration / Temperature Switch)

Output Signal:
2V AC (peak value) (load resistance above 10 kΩ at full measuring scale)

Power supply:
6F22 9V laminated cell

Power on / off:
Battery life about 30 hours for continuous use
Power up when pressing Measure Key (Vibration / Temperature Switch)
Power automatically shut off after releasing the Measure Key for one minute

Operating condition:
Temperature: 0 ～50 ℃
Humidity: ≤ 90% RH

Volume:
185 mm×68 mm×30 mm

Weight:200g
