Specifications
Place of Origin :
Beijing
Brand Name :
SADT
Certification :
CE ISO9001
Model Number :
HT-225A
MOQ :
1pc
Packaging Details :
Standard package
Delivery Time :
Within 3 days after receiving payment
Payment Terms :
T/T in advance, Western Union
Supply Ability :
50pcs/week
Price :
USD60-150/Pcs
testing range :
10-70N/mm2
key words :
concrete test hammer
Description

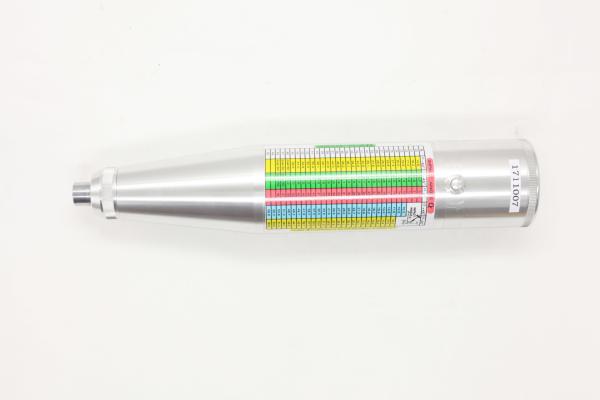

Mechanical schmidt concrete rebound test hammer ( HT-225A )

HT-225A is used for testing the strength of various concrete members (slab, beam, column, truss) of normal building strength and bridge.

Specifications:

Model HT-225A
Testing range:

0-70N/mm2
Nominal kinetic energy 2.207J(0.225kgf.m)
Flip tension spring rigidity 7.84N (0.80kgf)/cm
Punch advance for impact hammer 75mm
Impact surface hardness value between impact hammer and rod HRC59-63
Maximum breakout friction of pointer system
0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer
80+/-2
Standards ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
Dimension
60x280mm
Net weight
1kg

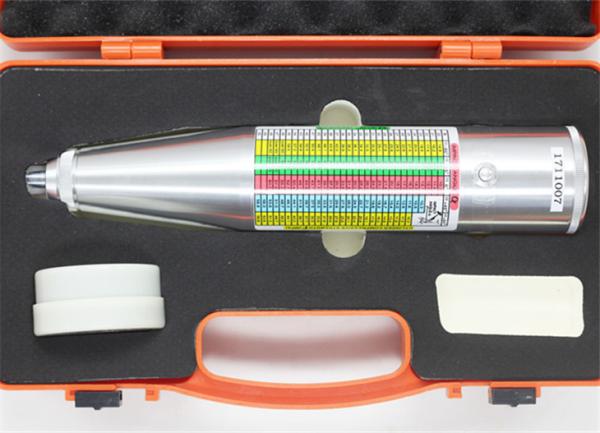

Standard package - HT-225A

HT225A main unit 1
Grinding wheel 1
Screw driver 1
Spring 1
Operation manual 1

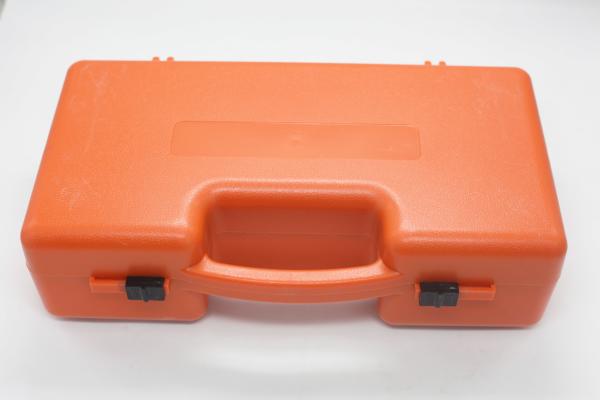

Carrying case 1Portable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength TestPortable Resiliometer Concrete Test Hammer HT-225A For Concrete Strength Test
