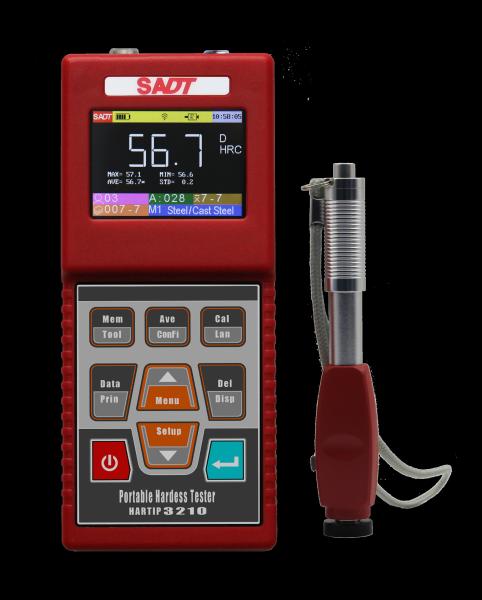

Wireless Probe Color Oled Display HLD Portable Hardness Tester
Wireless Probe Color Oled Display HLD Portable Hardness Tester
Specifications
Brand Name :
SADT
Model Number :
HARTIP3210
Certification :
ＣＥ　ＩＳＯ９００１ SGS
Place of Origin :
Beijing
MOQ :
1pc
Price :
USD400-1400/Pcs
Payment Terms :
T/T in advance, Western Union
Supply Ability :
50pcs/week
Delivery Time :
Within one week after receiving payment
Packaging Details :
Standard package
language :
10 language
Display :
TFT large color LCD with pixel 320 x 240
Accuracy :
+/-2 HLD
Testing material :
11 metal materials
Principle :
Leeb hardness measurement
Probe :
cable probe and wireless probe
r/f communication distance :
10m in space
Warranty :
1 year
Certificate :
CE/ISO9001/SGS
Description

Portable Rockwell Hardness Tester Accurate for Metal Materials HARTIP3210

HARTIP 3210 is a new generation of hardness tester with more advanced technology and features. The tester applies our new patent technology which makes the tester more accurate than old previous model. All impact device (probe) are no need to setup impact direction. HARTIP 3210can work with both analogy impact device and wireless RF probe.


The measuring values can be downloaded to PC and printer by wireless or by cable.


The HARTIP3210 also can be powered by USB power supply without battery via PC cable.

MEASURING METHOD

The measuring principle of HARTIP series hardness testers is defined as "the quotient of the impact body's rebound and impact velocity, multiplied by 1000." An impact body with a Tungsten Carbide test tip is propelled by spring force against the test surface and then rebounds back. A permanent magnet is contained within the impact body. When it passes through the coil on impact device, it induces an electric voltage which is proportional to the velocity of the impact body.

KEY FEATURES

  • Wireless digital / cable analogue compatible
  • No need to setup different impact direction
  • Higher accuracy at+/-2 HLD
  • TFT large color LCD with pixel 320 x 240
  • Multi-color style – suitable under sunshine
  • Multi display mode - statistics, bar graph, etc.
  • Multi save mode for data
  • Multi statistics calculation
  • Print online and screen copy printout
  • Sound reminder
  • Real date and time
  • Recalibration for unified or individual scale
  • Operator, part no., procedure no. record

Specifications

Model SADT HARTIP 3210
Principle Leeb hardness measurement
Accuracy ±0.3% @ HL=800, Repeatability: ±2HL
Display 2.8” 320 x 240 TFT color LCD - fittable under sunshine
Hardness scale HL / HRC / HRB / HB / HV / HS / HRA /σb
Measuring range HL100-960 / HRC0.9-83.2 / HRB1-140 / HB1-1878 / HV1-1698 /
HS0.5-1370 / HRA1-88.5 / σb(rm)1-6599N/mm²
Probe r/f wireless probe D / standard cable probe D
DC / D+15 / C / G / E / DL (Optional)
Materials 11 common metal materials, 60 conversion curves
Memory 63 files, 100 data for each file, can be saved and re-readable
Statistics function Single group analysis -- mean, max., min., extreme deviation,
standard deviation, coefficient of kurtosis, coefficient of skewness,
percent of pass, column diagram, normality distribution test and
uniform distribution test
Double group analysis-- significant difference test for mean value,
standard deviation, percent of pass and distribution
Re-calibration Calibration for unified or individual scale
Indicator Upper limit / Lower limit / low battery / buzzer warning / date and time
Language English, Simplified Chinese, Traditional Chinese, Russian,
Korean, French, Italian, German, Turkish, Spanish
Communication USB / RS232 / Bluetooth / 2.4G wireless(Optional)
Continous working time >40 hours
Power supply 1.5V AA alkaline battery x 4 / 1.2V nickel-hydrogen rechargerable
battery x 4 / 3.7VLi-ion rechargeable battery x 4 / USB power supply
Working environment -10~+45ºC
Dimension (mm) 195x84x38
Net weight (g) 550
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Special Features of Impact Devices

Type Brief description
D

Universal standard unit for majority of hardness testing

assignments.
DC Extremely short impact device, other specs identical with type D.
Application: - highly confined spaces
- holes and cylinders
- internal measurements on assembled machines
D+15 Slim front section
Application: - grooves and recessed surfaces.
DL Extremely slim front section
Application: - extremely confined spaces
- base of grooves
C Reduced impact energy ( compared with type D).
Application: - surface hardened components, coatings
- minimum layer thickness: 0.2mm.
- thin walled or impact sensitive components (small measuring indentation).
E Synthetic diamond test tip (approx.5000 HV).
Application: - extremely high hardness measurement such as high carbon steel up to 1200 HV
G Increased impact energy(approx. 9 times that of type D)
Application: - Brinell hardness range only
- heavy cast and forged parts with lower demands on surface finish.
