Leeb Pen Cast Steel Hartip1900 Integrated Hardness Tester G Probe Auto Impact Direction
Leeb Pen Cast Steel Hartip1900 Integrated Hardness Tester G Probe Auto Impact Direction
Specifications
Brand Name :
SADT
Model Number :
Hartip1900
Certification :
CE , ISO9001
Place of Origin :
Beijing
MOQ :
1pc
Price :
USD900-1500/Pcs
Payment Terms :
T/T in advance
Supply Ability :
50pcs/week
Delivery Time :
Within 3 days after receipt of advanced payment
Packaging Details :
Standard package
Accuracy :
±4HLG
Probe :
G
Language :
English
Hardness scale :
HL/HRB/HB
Materials :
Steel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum
Dimension (mm) :
255x37x48
Net weight (g) :
260
Warranty :
1 year
Description

Leeb Pen Cast Steel Portable Hardness Tester Hartip1900 with Universal Impact Direction

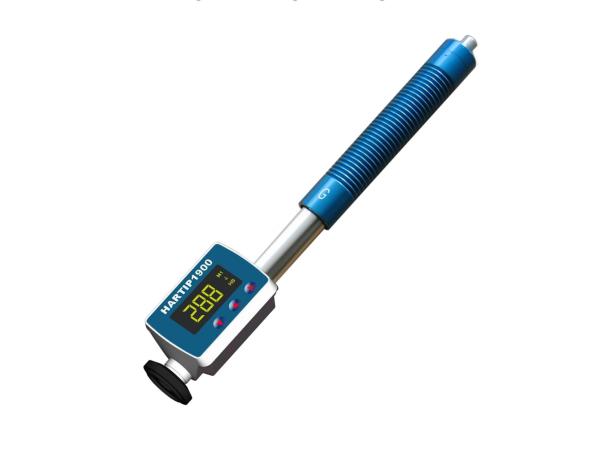

HARTIP 1900 is a portable integrated Cast steel Leeb hardness tester that is specially designed to measure hardness of castings in HL (Leeb), HRB (Rockwell B), HB(Brinell).

It has more impact energy (90N) and large contact tip (dia.5mm) than normal. Therefore it can make test on machined surface or even roughness surface instead of polished or finished surface.
It is widely used for measuring hardness of large castings or raw materials at spot.
The HARTIP 1900 can make test at any angle without making setup for different impact direction. All readings can be downloaded to computer or printed out to microprinter wirelessly by Bluetooth.

Leeb Pen Cast Steel Hartip1900 Integrated Hardness Tester G Probe Auto Impact Direction

KEY FEATURES

  •  Rugged and Integrated design in aluminium housing
  •  Universal impact direction, it does not need to setup different impact direction, it will be recognized automatically
  •  Dual hardness scales on display
  •  Four viewing orientation
  •  Shifting between large view & batch view
  •  Statistics value display automatically
  •  Upper or lower limit reminder
  •  High contrast OLED display
  •  Bluetooth interface for wireless transmission
  •  LI-ion rechargeable battery
  •  Abundant memory

Specifications

Model SADT HARTIP 1900
Principle Leeb hardness measurement
Accuracy ±4HLG
Display High contrast OLED
Hardness scale HL/HRB/HB
Measuring range HLG300-750 / HRB47-100 / HB90-650
Impact device G
Materials Steel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum
Memory 360000 data in 400 blocks, can be saved and re-readable
Statistics function Average / Max. / Min. / S. value
Re-calibration Allowed by user
Indicator Low battery
Interface USB or Bluetooth
Power on/off Auto / Manually
Power supply Rechargeable Li-ion battery charged by USB port or charger
Working environment -40ºC~+70ºC
Dimension (mm) 255x37x48
Net weight (g) 260
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
