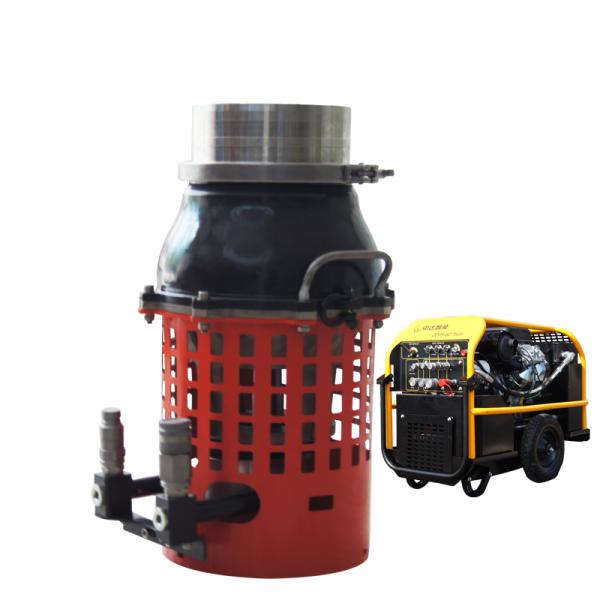

160-250bar Hydraulic Submersible Pump 10m Head Output Flow 400m3/H
160-250bar Hydraulic Submersible Pump 10m Head Output Flow 400m3/H
Specifications
Brand Name :
Zondar
Model Number :
ZDSP4010
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Payment Terms :
L/C, Western Union, MoneyGram
Supply Ability :
5000sets/years
Delivery Time :
7-15workday
Packaging Details :
standard wooden case
Brand :
ZONDAR
Name :
CE Manufacturer Hydraulic Submersible Pump 10m Head For Sale
Flow :
400m³/h
Pumed maximum particle :
10mm
Maximum Flying Dust :
5m
Pressure :
160-250 bar
Structure :
Gear Pump
Description

CE Manufacturer Hydraulic Submersible Pump 10m Head For Sale

160-250bar Hydraulic Submersible Pump 10m Head Output Flow 400m3/H

Product descripition:

1. Hydraulic motor with special drive shaft, oil sealed and bearing

2. It is cooled and lubricatd by hydraulic oil, can dry run with no damage

3. No risk of electrical leakage

4. Small size, light wight,easy to carry

5. Low environmental impact, high safety and stability

Product features:

High head to 10m ,output flow is 400m3/h

One of piece mold , more stable structure.

Quick coupling is simple to install and disassemble.

Parameter configuration

Model DZSP6020 DZSP6006 DZSP4010 DZSP5005
Flow(m³/h) 600 600 400 450
Maximum flying dust/m 20 6 10 5
Weight/kg 60 41 40 27
Operational flow/Lpm 120-130 72-80 72-80 52-60
Outfall/mm 200 200 200 200
Size/mm 328×328×550 328×328×470 328×328×470 260×260×450
Pumped maximum particle/mm 25 25 25 25
