120A Isolation Current Transformer For I - P Close Link Meter Testing
120A Isolation Current Transformer For I - P Close Link Meter Testing
Specifications
Brand Name :
KRE
Model Number :
KE632x
Certification :
ISO9000
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
50 pieces per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Product name :
Isolation current transformer
Primary current range :
10mA-120A
Secondary current range :
10mA-120A
Ratio :
1:1
Frequency :
50/60Hz
Output power :
60VA max
Description

120A Isolation Current Transformer For I - P Close Link Meter Testing Ratio 1 : 1

KE632x Isolation current transformer

KE632x series includes Isolation current transformer (ICT) range from single phase to three phase. With wide current range, it is perfect for the test of I-P close link meter.

Features:

  1. High accuracy through active electronic error compensation.
  2. Direct perforated installation
  3. Wide current dynamic range: 10mA --120A (Primary side)
  4. Output power: Max 60VA per phase
  5. When secondary measure open circuit or overload occurs, ICT will protect automatically and send out alarm signal
  6. Can realize local bypass through button
  7. With RS485 port, can realize remote control and status monitoring

Specifications:

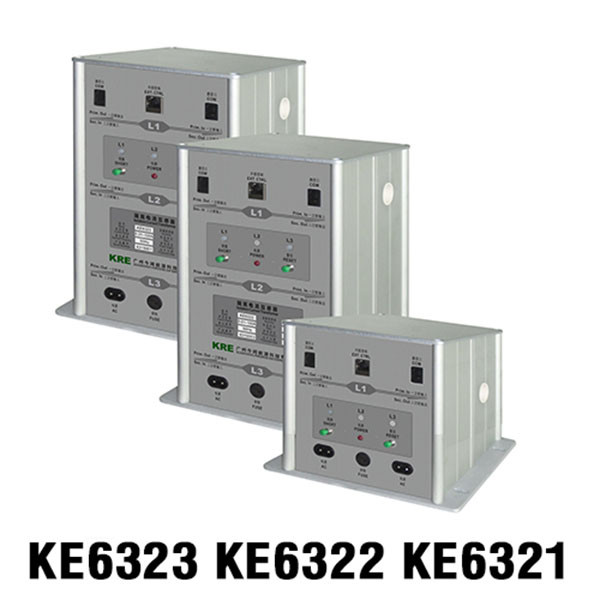

KE6323 KE6322 KE6321
Accuracy 0.02
Phase number 3 2 1
Nominal frequency 50 Hz (45 … 55 Hz) or 60 Hz (54 … 66 Hz)
Primary current range 10mA-120A
Ratio 1:1
Secondary current range 10mA-120A
Ratio error(typical) ±0.01%
Angle error(typical) ±0.05min
Output power per phase (max.) 60VA
Auxiliary power supply Ac185V- 265V / 45Hz - 65Hz

120A Isolation Current Transformer For I - P Close Link Meter Testing

Our Exhibition in India Elecrama

We exhibited three phase ICT in Elecrama, and it intrigued some customers.

120A Isolation Current Transformer For I - P Close Link Meter Testing
