2 Current Channels Energy Meter Calibration Equipment Bar Code Input
2 Current Channels Energy Meter Calibration Equipment Bar Code Input
Specifications
Brand Name :
KRE
Model Number :
KE8104
Certification :
ISO9000
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
50 pieces per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Product name :
meter calibration equipment
Frequency :
45 - 65Hz
Phase :
Single phase
Current range :
1mA - 120A
Voltage range :
24 - 300V
Meter positions :
3-48
Description

Single Phase Energy Meter Calibration Equipment 2 current channels with ICT class 0.05

KE8104 single phase meter calibration equipment

KE8104 has double current channels with ICT isolation, used for 2 element single phase mechanical and electric meter calibration, Number of meter position: 3-48

Features and functions:

  1. Integrated / Separated aluminum alloy structure, light and reliable, flexible choices
  2. The number of meter positions can be chosen from 3 - 48
  3. Perfect alarming protective function, auto protection of the short circuit of voltage, the open circuit of current, and overload.
  4. Full automatic, semi-automatic and manual operation available
  5. Influencing quantity test of voltage, frequency, harmonic
  6. Calibration and verification of energy constant
  7. Powerful computer management system, easy and user-friendly
  8. Perfect database management makes the storage, searching and viewing of the data possible, and the data can be converted and exported in other forms
  9. Supporting bar code input, which increase the efficiency of input
  10. Simultaneous test of the energy meters with same specification, different constants and different classes.
  11. Auto mark locking increases the efficiency of test
  12. Forward and reverse active energy / forward and reverse reactive energy error test
  13. Creeping and starting test
  14. Standard deviation, 24 hour variation test
  15. The test of open circuit for Neutral voltage (optional)

Product Specification:

KE8104-12

Number of meter position

12

Accuracy

±0.05%

Voltage output

Output range (P-N)

24V - 300V

Output power of voltage

250VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Current output

Output range

1mA - 120A

Output power of current

750VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Phase output

Output range

0 -- 360°

Resolution

± 0.01°

Frequency

Output range

45Hz - 65Hz

Resolution

± 0.01Hz

Operation condition

Power supply

220V±10%,50/60Hz±2Hz

Temperature

-10°C -- +40°C

Humidity

35% -- 85%RH

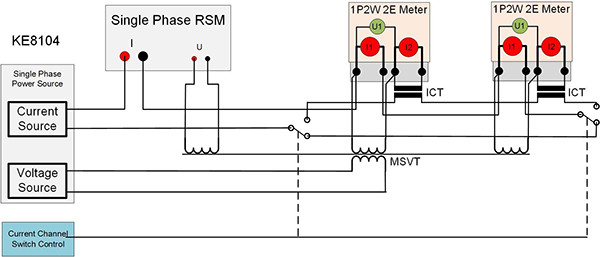

Wiring diagram
