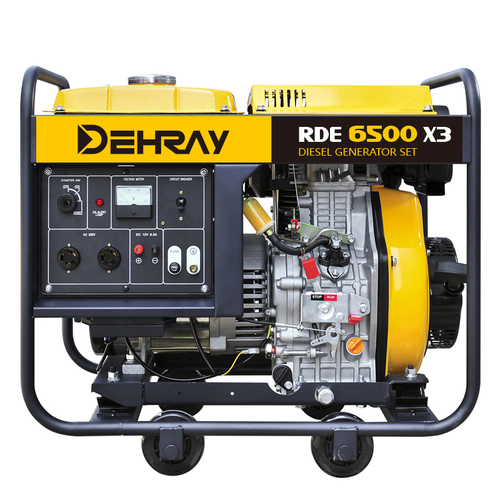

Three phase 6KW Portable Silent Deisel Generators to be used near construction sites
Three phase 6KW Portable Silent Deisel Generators to be used near construction sites
Specifications
Brand Name :
DEHRAY
Model Number :
RDE6500X3
Certification :
CE, EURO V, EPA, ISO9001
Place of Origin :
CHINA
MOQ :
N/M
Price :
Based On Order
Payment Terms :
T/T, L/C, D/P, Western Union, D/A
Supply Ability :
500 Sets Per Week
Delivery Time :
20 Working Days
Packaging Details :
Seaworthy Delivery Package/ Wooden Package/ Carton/ Pallet
Product Name :
6KW Diesel Generator
Model No. :
RDE6500X3
Power Rate :
6KW
Rated Frequency :
50/60 Hz
Rated Rotation Speed :
3000/3600 rpm
Phase number :
Single phase
Excitation mode :
Self-exciation and constant voltage(with AVR)
Power factor :
0.8 cos
Insulation grade :
F mm
Engine Type :
Single Cyliner
Structure Type :
Air Cooled
Bore Stroke :
86*72
Displacement :
0.418L
Fuel type :
Diesel : 0# (summer), -10# (winter), -35# (chillness)
Starting System :
Recoil starter
Noise Level :
77 dB(A)/7m
Overall Dimensions :
720×492×655 mm
Net Weight :
95 kg
Description

Three phase 6KW Portable Silent Deisel Generators to be used near construction sites

Generator set
Rated frequency Hz 50 60
Rated power kVA 5.5 6.3
Max. power kVA 6.0 7.0
Rated voltage V 400/230 416/240
Rated current A 7.9 8.7
Rated rotation speed r/min 3000 3600
Generator
Pole No. 2
Phase number Three phase
Excitation mode Self-exciation and constant voltage(with AVR)
Power factor COS 0.8 (lag)
Insulation grade mm F
Engine
Engine type RD186FAG
Structure type Single-cylinder, vertical, 4-stroke,
air-cooled, direct-injected
Bore x stroke mm 86×72
Displacement L 0.418
Compression ratio mm 19 : 1
Rated power kW 5.7 6.3
Lubrication system Pressure splashed
Lube oil brand Above CD or SAE 10W-30, 15W-40
Lube capacity L 1.65
Starting system Recoil starter
Fuel consumption ratio g/kW.h 275.1 281.5
Fuel type Diesel : 0# (summer), -10# (winter), -35# (chillness)
Genset
Panel type General panel
Output Receptacle 1-Single phase, 1-Three phase
Output Connection pole without
Nosie level(7m) dB(A) 77
Fue tank capacity L 13.5
Overall dimensions mm 720×492×655
Net weight kg 95

Three phase 6KW Portable Silent Deisel Generators to be used near construction sites
